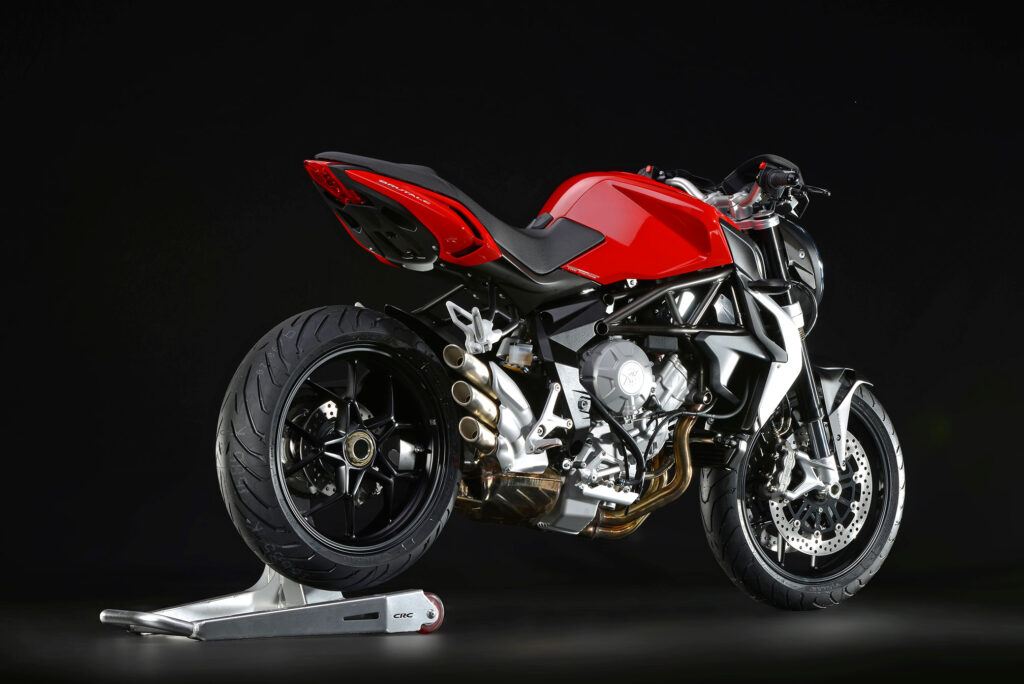

2016 MV Agusta Brutale 675 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 MV Agusta Brutale 675.

Basic Specs

Year2016
MakeMV Agusta
ModelMV Agusta Brutale 675
CostUS$ 11998. Prices depend on country, taxes, accessories, etc.

Engine

Displacement675.00 ccm (41.19 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression12.3:1
Bore/Stroke79.0 x 45.9 mm (3.1 x 1.8 inches)
Valves/Cylinder4
FuelingInjection
IgnitionIntegrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc with mechanical drive
DrivelinePrimary 19/36. Final 16/43.

Performance

Horespower110.00 HP (80.3 kW)
Torque65.00 Nm (6.6 kgf-m or 47.9 ft.lbs)
Top Speed225.0 km/h (139.8 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.60 litres (4.39 gallons)
Emissions

Chassis

Frame TypeALS steel tubular Trellis. Aluminium alloy swin arm.
Rake
Trail95 mm (3.7 inches)
Front SuspensionMarzocchi UPD fork
Front Travel125 mm (4.9 inches)
Rear SuspensionProgressive Sachs, single shock absorber with spring preload adjustment.
Rear Travel119 mm (4.7 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,085 mm (82.1 inches)
Total Width725 mm (28.5 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1,380 mm (54.3 inches)
Dry Weight167.0 kg (368.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. 4-piston, Bremo.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. 2-piston, Bremo.
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminium alloy

Comments

It appears you're interested in specifications for the MV Agusta Brutale 675. This Naked bike model is powered by a In-line three, four-stroke engine with 675.00 ccm (41.19 cubic inches) of actual displacement before 12.3:1 compression. Fueling is metered via Injection allowing this machine to produce its 110.00 HP (80.3 kW) horsepower and 65.00 Nm (6.6 kgf-m or 47.9 ft.lbs) torque. According to our records engine heat of the MV Agusta Brutale 675 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, ALS steel tubular Trellis. Aluminium alloy swin arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston, Bremo. front brakes and Single disc. ABS. 2-piston, Bremo. rear brakes. The MV Agusta Brutale 675 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
