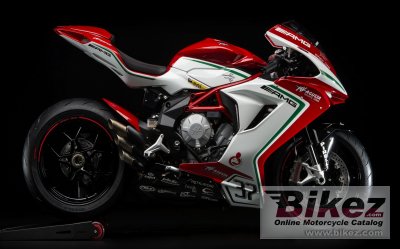

2016 MV Agusta F3 800 RC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 MV Agusta F3 800 RC.

Basic Specs

Year2016
MakeMV Agusta
ModelMV Agusta F3 800 RC
TypeSport
CostUS$ 18298. Prices depend on country, taxes, accessories, etc.

Engine

Displacement798.00 ccm (48.69 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM13500
Compression13.0:1
Bore/Stroke79.0 x 54.3 mm (3.1 x 2.1 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital CDI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc slipper clutch
Driveline

Performance

Horespower148.00 HP (108.0 kW)
Torque88.00 Nm (9.0 kgf-m or 64.9 ft.lbs)
Top Speed269.0 km/h (167.1 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.50 litres (4.36 gallons)
Emissions

Chassis

Frame TypeALS Steel Tubular Trellis
Rake
Trail99 mm (3.9 inches)
Front SuspensionMarzocchi UPD Telescopic fork
Front Travel125 mm (4.9 inches)
Rear SuspensionSachs adjustable monoshock
Rear Travel123 mm (4.8 inches)
Seat2-person seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,060 mm (81.1 inches)
Total Width725 mm (28.5 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,380 mm (54.3 inches)
Dry Weight173.0 kg (381.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Brembo radial-type monobloc, with 4 piston. Optional ABS..
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo with 2 pistons. Optional ABS.
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminium alloy.

Comments

It appears you're interested in specifications for the MV Agusta F3 800 RC. This Sport model is powered by a In-line three, four-stroke engine with 798.00 ccm (48.69 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 148.00 HP (108.0 kW) horsepower and 88.00 Nm (9.0 kgf-m or 64.9 ft.lbs) torque. According to our records engine heat of the MV Agusta F3 800 RC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, ALS Steel Tubular Trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo radial-type monobloc, with 4 piston. Optional ABS.. front brakes and Single disc. Brembo with 2 pistons. Optional ABS. rear brakes. The MV Agusta F3 800 RC was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Ride By Wire system. Limited edition of 250 numbered and certified bikes.
