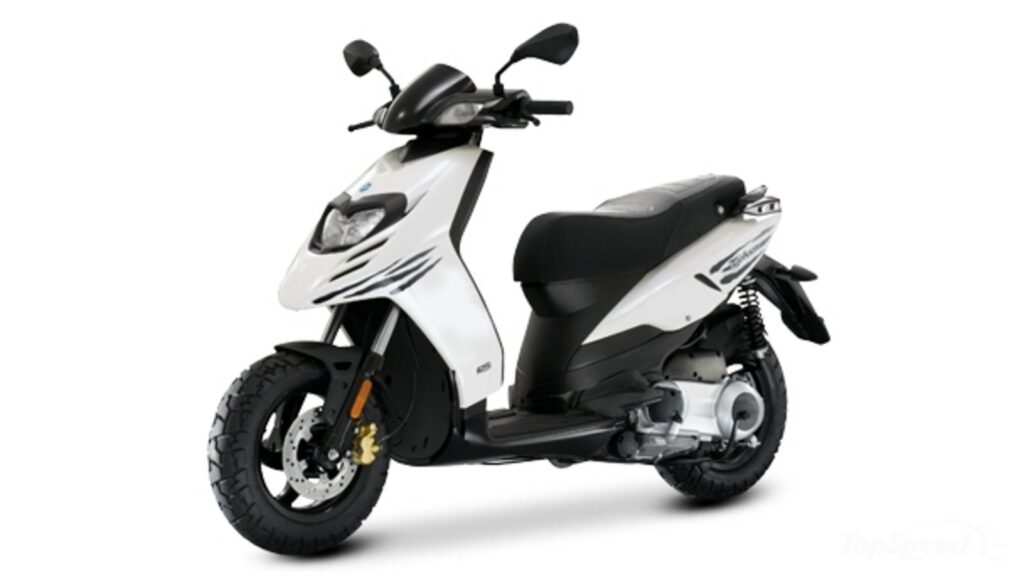

2016 Piaggio Typhoon 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Piaggio Typhoon 125.

Basic Specs

Year2016
MakePiaggio
ModelPiaggio Typhoon 125
CostUS$ 2899. Prices depend on country, taxes, accessories, etc.

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke55.9 x 27.9 mm (2.2 x 1.1 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineTwist and go automatic CVT

Performance

Horespower
Torque8.20 Nm (0.8 kgf-m or 6.0 ft.lbs)
Top Speed96.6 km/h (60.0 mph)

Fuel Economy & Polution

Fuel Consumption2.61 litres/100 km (38.3 km/l or 90.12 mpg)
Fuel Capacity7.50 litres (1.98 gallons)
Emissions60.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDouble cradle trellis made of high strength steel
Rake
Trail
Front SuspensionHydraulic telescopic fork with straight stanchions
Front Travel
Rear SuspensionHydraulic single shock absorber w. spring preload
Rear Travel
Seat
Seat Height762 mm (30.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,930 mm (76.0 inches)
Total Width711 mm (28.0 inches)
Ground Clearance
Wheelbase1,346 mm (53.0 inches)
Dry Weight
Wet Weight113.0 kg (249.1 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. Dual-piston floating caliper
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter140 mm (5.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Piaggio Typhoon 125. This Scooter model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and 8.20 Nm (0.8 kgf-m or 6.0 ft.lbs) torque. According to our records engine heat of the Piaggio Typhoon 125 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 130/70-12 . The entire package is supported by the frame, Double cradle trellis made of high strength steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual-piston floating caliper front brakes and Expanding brake (drum brake) rear brakes. The Piaggio Typhoon 125 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
