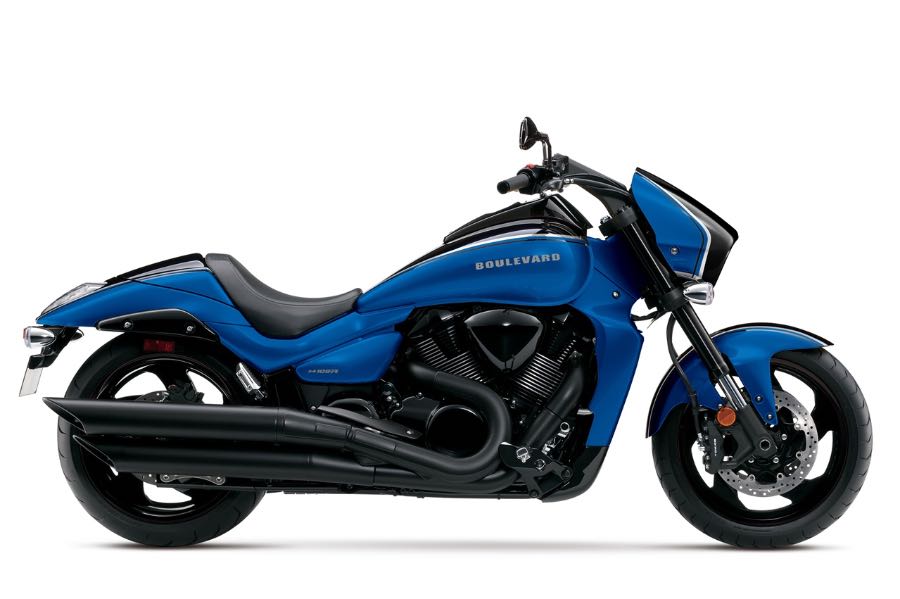

These are the known mechanical and performance specifications for your 2016 Suzuki Boulevard M109R Limited Edition.
Basic Specs
Year2016
MakeSuzuki
ModelSuzuki Boulevard M109R Limited Edition
TypeCustom / cruiser
CostUS$ 14799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1783.00 ccm (108.80 cubic inches)
Type54-degree V-Twin
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke112.0 x 90.5 mm (4.4 x 3.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition
Exhaust2-into-1-into-2 stainless steel chromed exhaust system
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Performance
Horespower125.00 HP (91.2 kW)
Torque160.00 Nm (16.3 kgf-m or 118.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.55 litres (4.90 gallons)
Emissions
Chassis
Frame TypeDouble cradle steel frame
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel130 mm (5.1 inches)
Rear SuspensionLink type, oil damped, coil spring
Rear Travel118 mm (4.6 inches)
Seat
Seat Height705 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,450 mm (96.5 inches)
Total Width875 mm (34.4 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,710 mm (67.3 inches)
Dry Weight
Wet Weight347.0 kg (765.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre240/40-R18
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter275 mm (10.8 inches)
Wheels
