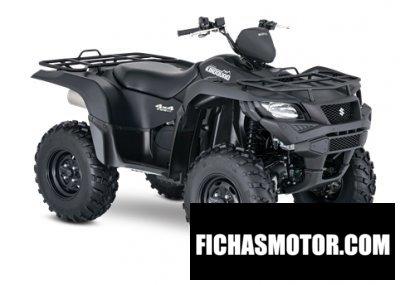

These are the known mechanical and performance specifications for your 2016 Suzuki KingQuad 750AXi Power Steering SE.
Basic Specs
Year2016
MakeSuzuki
ModelSuzuki KingQuad 750AXi Power Steering SE
TypeATV
CostUS$ 9599. Prices depend on country, taxes, accessories, etc.
Engine
Displacement722.00 ccm (44.06 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke104.0 x 85.0 mm (4.1 x 3.3 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
Gearbox100-speed
Final DriveShaft drive (cardan)
Clutch
Driveline2WD, 4WD and 4WD Differential Lock
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.50 litres (4.62 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Front Travel180 mm (7.1 inches)
Rear SuspensionIndependent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Rear Travel201 mm (7.9 inches)
Seat
Seat Height920 mm (36.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,285 mm (50.6 inches)
Total Length2,115 mm (83.3 inches)
Total Width1,210 mm (47.6 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,280 mm (50.4 inches)
Dry Weight
Wet Weight305.0 kg (672.4 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc. Twin rotors
Front Brake Diameter
Rear BrakesSealed multidisc
Rear Brake Diameter
WheelsAluminum rims
Comments
Push-button controls allow the rider to select 2WD, 4WD and differential-lock 4WD. Special Edition model.
