Suzuki

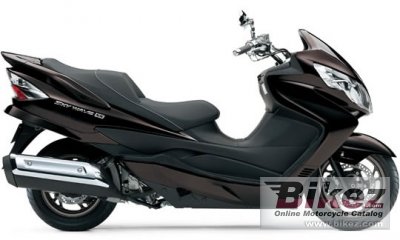

2016 Suzuki Skywave SS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Suzuki Skywave SS.

Basic Specs

Year2016
MakeSuzuki
ModelSuzuki Skywave SS
TypeScooter
Cost
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke69.0 x 66.8 mm (2.7 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTransistorised
Exhaust
LubricationPump
CoolingLiquid
Spark Plugs

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAutomatic centrifugal
Driveline
Belt Clutch Plates

Performance

Horespower26.00 HP (19.0 kW)
Torque25.00 Nm (2.5 kgf-m or 18.4 ft.lbs)
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption2.56 litres/100 km (39.1 km/l or 91.88 mpg)
Fuel Capacity13.00 litres (3.43 gallons)
Emissions59.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel Bottles & Cans

Chassis

Frame TypePipe underbone
Rake25.2°
Trail102 mm (4.0 inches)
Front SuspensionTelescopic, 41mm inner tube
Front Travel
Rear SuspensionProgressive linkage, Preload adjustable
Rear Travel
SeatDual seat
Seat Height710 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length2,270 mm (89.4 inches)
Total Width810 mm (31.9 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,585 mm (62.4 inches)
Dry Weight215.0 kg (474.0 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/80-14
Rear Tire/Tyre150/70-13
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Suzuki Skywave SS. This Scooter model is powered by a Single cylinder, four-stroke engine with 249.00 ccm (15.19 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection allowing this machine to produce its 26.00 HP (19.0 kW) horsepower and 25.00 Nm (2.5 kgf-m or 18.4 ft.lbs) torque. According to our records engine heat of the Suzuki Skywave SS is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/80-14 and the rear is 150/70-13 . The entire package is supported by the frame, Pipe underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Suzuki Skywave SS was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in Japan.
