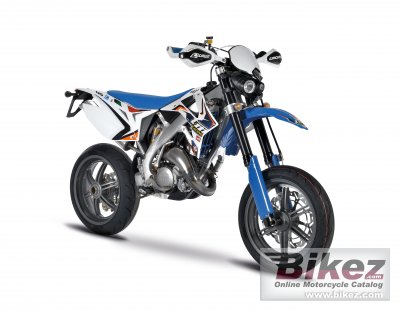

2016 TM Racing SMM 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 TM Racing SMM 125.

Basic Specs

Year2016
MakeTM Racing
ModelTM Racing SMM 125
Cost

Engine

Displacement123.50 ccm (7.54 cubic inches)
TypeV-Force Reed valve
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 38
IgnitionKokusan CDI Electronic with variable advance with two selectable maps
Exhaust
Lubrication3,5% oil mix
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultiuple-disk in oil-bath with hydaulic control
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.20 litres (2.17 gallons)
Emissions

Chassis

Frame TypeAlluminium perimetral
Rake
Trail
Front SuspensionMarzocchi USD 45 mm (optional Marzocchi USD 50 mm)
Front Travel
Rear SuspensionSachs (optional Ohlins o TM Racing)
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre150/60-ZR17
Front BrakesSingle disc. Wave disk with Brembo pump and radial caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Wave disk with Nissin pump and Brembo caliper
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast aluminium alloy 6-spoke

Comments

It appears you're interested in specifications for the TM Racing SMM 125. This Super motard model is powered by a V-Force Reed valve Single cylinder, two-stroke engine with 123.50 ccm (7.54 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin PWK 38 allowing this machine to produce its horsepower and torque. According to our records engine heat of the TM Racing SMM 125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 150/60-ZR17 . The entire package is supported by the frame, Alluminium perimetral . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Wave disk with Brembo pump and radial caliper front brakes and Single disc. Wave disk with Nissin pump and Brembo caliper rear brakes. The TM Racing SMM 125 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Italian brand.
