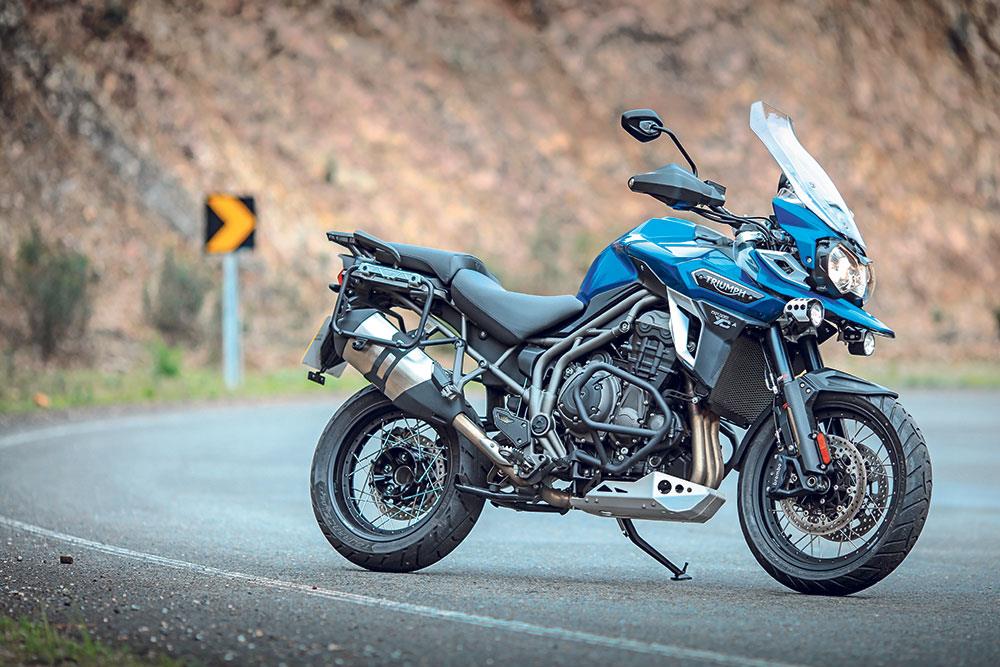

These are the known mechanical and performance specifications for your 2016 Triumph Tiger Explorer.
Basic Specs
Engine
Displacement1215.00 ccm (74.14 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke85.0 x 71.4 mm (3.3 x 2.8 inches)
Valves/Cylinder4
FuelingInjection. Drive by wire.
Ignition
ExhaustStainless steel 3 into 1 . side mounted stainless steel silencer
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet, multi-plate hydraulically operated
Driveline
Performance
Horespower137.00 HP (100.0 kW)
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel trellis frame
Rake23.9°
Trail106 mm (4.2 inches)
Front SuspensionKayaba 46 mm upside down forks, adjustable preload
Front Travel190 mm (7.5 inches)
Rear SuspensionKayaba monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
Rear Travel194 mm (7.6 inches)
Seat
Seat Height837 mm (33.0 inches) If adjustable, lowest setting.
Alt. Seat Height857 mm (33.7 inches) If adjustable, highest setting.
Total Height1,410 mm (55.5 inches)
Total Length2,248 mm (88.5 inches)
Total Width885 mm (34.8 inches)
Ground Clearance
Wheelbase1,530 mm (60.2 inches)
Dry Weight228.0 kg (502.7 pounds)
Wet Weight259.0 kg (571.0 pounds)
Wheels & Brakes
Front Tire/Tyre110/80-18
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Floating discs, Nissin 4-piston calipers, Switchable ABS.
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc. Nissin 2-piston sliding caliper. Switchable ABS.
Rear Brake Diameter282 mm (11.1 inches)
WheelsCast aluminium alloy 10-spoke
Comments
Windscreen. Traction control. Cruise control. Ride By Wire.
