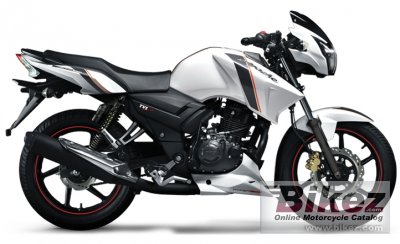

2016 TVS Apache RTR 160 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 TVS Apache RTR 160.

Basic Specs

Year2016
MakeTVS
ModelTVS Apache RTR 160
TypeSport
Cost

Engine

Displacement159.70 ccm (9.74 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke62.0 x 52.9 mm (2.4 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Ucal BS-29
IgnitionIDI-Dual mode digital ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet Multi-Plate
Driveline

Performance

Horespower15.01 HP (11.0 kW)
Torque13.10 Nm (1.3 kgf-m or 9.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeDouble Cradle SynchroSTIFF
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionMonotube Inverted Gas-filled shox (MIG) with spring aid
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,105 mm (43.5 inches)
Total Length2,085 mm (82.1 inches)
Total Width730 mm (28.7 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,300 mm (51.2 inches)
Dry Weight
Wet Weight137.0 kg (302.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-17
Rear Tire/Tyre110/80-17
Front BrakesSingle disc
Front Brake Diameter270 mm (10.6 inches)
Rear BrakesSingle disc. Optional drum
Rear Brake Diameter200 mm (7.9 inches)
Wheels

Comments

It appears you're interested in specifications for the TVS Apache RTR 160. This Sport model is powered by a Single cylinder, four-stroke engine with 159.70 ccm (9.74 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Ucal BS-29 allowing this machine to produce its 15.01 HP (11.0 kW) horsepower and 13.10 Nm (1.3 kgf-m or 9.7 ft.lbs) torque. According to our records engine heat of the TVS Apache RTR 160 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-17 and the rear is 110/80-17 . The entire package is supported by the frame, Double Cradle SynchroSTIFF. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc. Optional drum rear brakes. The TVS Apache RTR 160 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in India.
