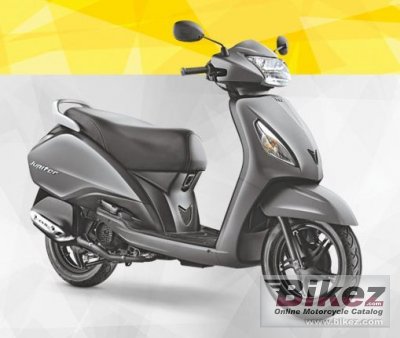

2016 TVS Jupiter ZX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 TVS Jupiter ZX.

Basic Specs

Year2016
MakeTVS
ModelTVS Jupiter ZX
Cost

Engine

Displacement109.70 ccm (6.69 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke53.5 x 48.8 mm (2.1 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. CV type
IgnitionDigital IDI with Ignition Map Technology
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveChain
ClutchWet - multi plate type
Driveline

Performance

Horespower8.00 HP (5.8 kW)
Torque8.00 Nm (0.8 kgf-m or 5.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions

Chassis

Frame TypeUnderbone
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionGas Charged Mono Shock
Rear Travel
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length1,834 mm (72.2 inches)
Total Width650 mm (25.6 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,275 mm (50.2 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-12
Rear Tire/Tyre90/90-12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter130 mm (5.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the TVS Jupiter ZX. This Scooter model is powered by a Single cylinder, four-stroke engine with 109.70 ccm (6.69 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via Carburettor. CV type allowing this machine to produce its 8.00 HP (5.8 kW) horsepower and 8.00 Nm (0.8 kgf-m or 5.9 ft.lbs) torque. According to our records engine heat of the TVS Jupiter ZX is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-12 and the rear is 90/90-12 . The entire package is supported by the frame, Underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The TVS Jupiter ZX was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in India.
