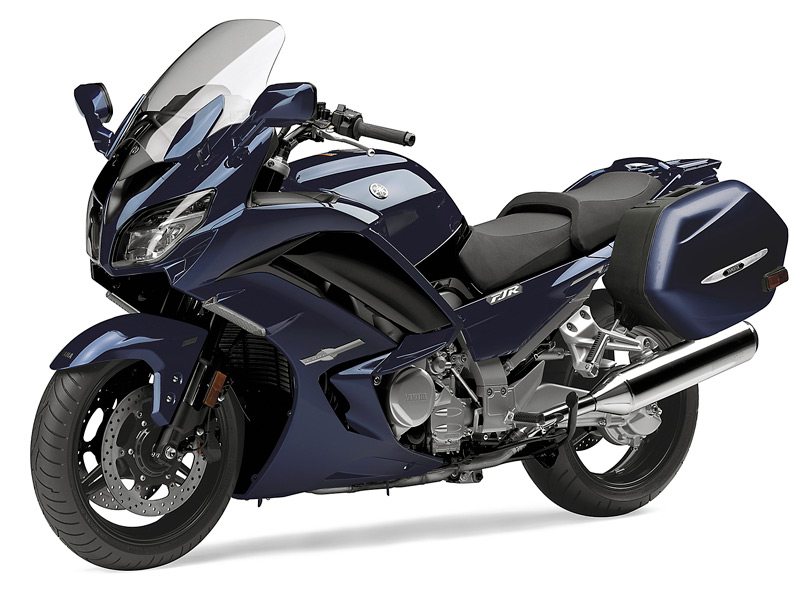

2016 Yamaha FJR1300A Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Yamaha FJR1300A.

Basic Specs

Year2016
MakeYamaha
ModelYamaha FJR1300A
TypeSport touring
Cost Euro 15795. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement1298.00 ccm (79.20 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke79.0 x 66.2 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI: Transistor Controlled Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Shaft drive (cardan) Clutch Plates

Performance

Horespower146.20 HP (106.7 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption6.53 litres/100 km (15.3 km/l or 36.02 mpg)
Fuel Capacity24.98 litres (6.60 gallons)
Emissions151.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel Bottles & Cans

Chassis

Frame Type
Rake26.0°
Trail109 mm (4.3 inches)
Front Suspension48mm fork
Front Travel135 mm (5.3 inches)
Rear SuspensionSingle shock, adjustable preload and rebound damping, 4.9-in travel
Rear Travel124 mm (4.9 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,326 mm (52.2 inches)
Total Length2,230 mm (87.8 inches)
Total Width749 mm (29.5 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,544 mm (60.8 inches)
Dry Weight
Wet Weight288.9 kg (637.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Unified Brake System and ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Unified Brake System and ABS
Rear Brake Diameter282 mm (11.1 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Yamaha FJR1300A. This Sport touring model is powered by a In-line four, four-stroke engine with 1298.00 ccm (79.20 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 146.20 HP (106.7 kW) horsepower and 138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) torque. According to our records engine heat of the Yamaha FJR1300A is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Unified Brake System and ABS front brakes and Single disc. Unified Brake System and ABS rear brakes. The Yamaha FJR1300A was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield. Heated grips.
