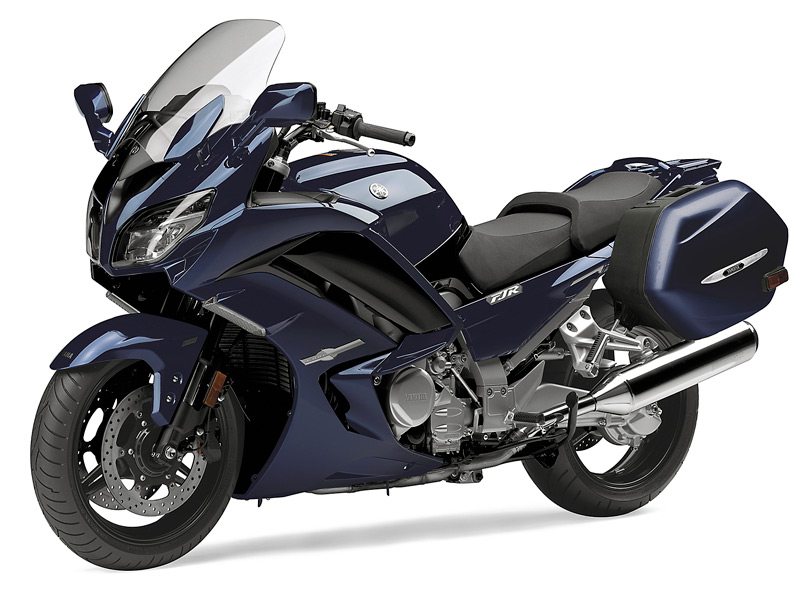

These are the known mechanical and performance specifications for your 2016 Yamaha FJR1300AE.
Basic Specs
Engine
Displacement1298.00 ccm (79.20 cubic inches)
TypeForward-inclined parallel cylinder
DetailsIn-line four, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke79.0 x 66.2 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchAssist and slipper clutch
Driveline
Performance
Horespower146.20 HP (106.7 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.53 litres/100 km (15.3 km/l or 36.02 mpg)
Fuel Capacity24.98 litres (6.60 gallons)
Emissions151.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeAluminium, Diamond Shaped
Rake26.0°
Trail109 mm (4.3 inches)
Front SuspensionUpside-down telescopic fork, Ø 48 mm
Front Travel135 mm (5.3 inches)
Rear SuspensionLinked monoshock with spring preload adjustment
Rear Travel124 mm (4.9 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,455 mm (57.3 inches)
Total Length2,230 mm (87.8 inches)
Total Width749 mm (29.5 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,544 mm (60.8 inches)
Dry Weight
Wet Weight292.0 kg (643.7 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels
Comments
Windshield. Heated grips. Electronically adjustable suspension system.
