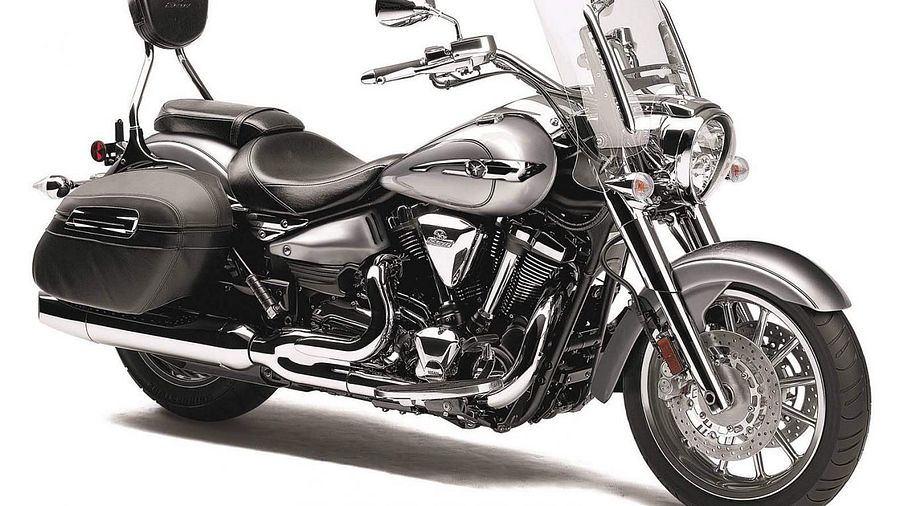

2016 Yamaha Star Stratoliner S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Yamaha Star Stratoliner S.

Basic Specs

Year2016
MakeYamaha
ModelYamaha Star Stratoliner S
CostUS$ 16999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1851.85 ccm (113.00 cubic inches)
Type48° V-twin. Ceramic-composite plated cylinders.
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves/Cylinder4
FuelingInjection. Twin-Bore electronic fuel injection;throttle position sensor
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multiplate
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum
Rake
Trail
Front Suspension46mm telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSingle shock
Rear Travel109 mm (4.3 inches)
Seat
Seat Height706 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,514 mm (59.6 inches)
Total Length2,581 mm (101.6 inches)
Total Width1,054 mm (41.5 inches)
Ground Clearance
Wheelbase1,715 mm (67.5 inches)
Dry Weight
Wet Weight368.0 kg (811.3 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-18
Rear Tire/Tyre190/60-17
Front BrakesDouble disc. Hydraulic.
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter320 mm (12.6 inches)
Wheels12-spoke cast

Comments

It appears you're interested in specifications for the Yamaha Star Stratoliner S. This Touring model is powered by a 48° V-twin. Ceramic-composite plated cylinders. V2, four-stroke engine with 1851.85 ccm (113.00 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. Twin-Bore electronic fuel injection;throttle position sensor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Yamaha Star Stratoliner S is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-18 and the rear is 190/60-17 . The entire package is supported by the frame, Aluminum . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. front brakes and Single disc. Hydraulic. rear brakes. The Yamaha Star Stratoliner S was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
