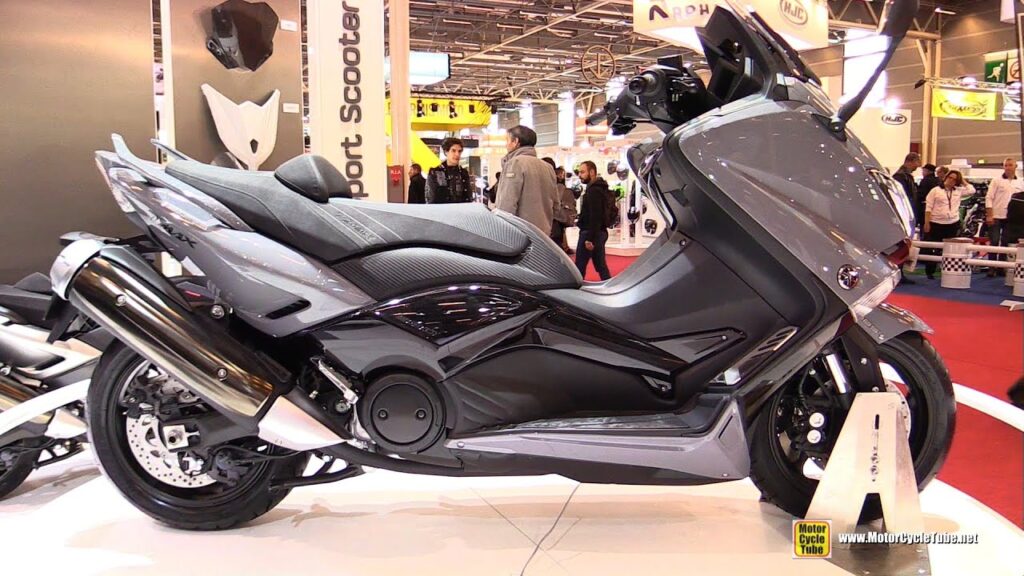

These are the known mechanical and performance specifications for your 2016 Yamaha TMAX Lux Max.
Basic Specs
Year2016
MakeYamaha
ModelYamaha TMAX Lux Max
TypeScooter
Cost Euro 11595. Prices depend on country, taxes, accessories, etc.
Engine
Displacement530.00 ccm (32.34 cubic inches)
TypeForward inclined parallel cylinders
DetailsTwin, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke66.0 x 73.0 mm (2.6 x 2.9 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital TCI
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveBelt
ClutchWet, multiple-disc automatic centrifugal
DrivelineV-belt
Performance
Horespower45.86 HP (33.5 kW)
Torque52.30 Nm (5.3 kgf-m or 38.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity15.14 litres (4.00 gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDie-cast aluminium
Rake
Trail
Front Suspension43mm upside-down telescopic forks
Front Travel120 mm (4.7 inches)
Rear SuspensionSwingarm
Rear Travel116 mm (4.6 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,475 mm (58.1 inches)
Total Length2,200 mm (86.6 inches)
Total Width775 mm (30.5 inches)
Ground Clearance124 mm (4.9 inches)
Wheelbase1,580 mm (62.2 inches)
Dry Weight
Wet Weight219.0 kg (482.8 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-15
Rear Tire/Tyre160/60-15
Front BrakesDouble disc. Optional ABS.
Front Brake Diameter267 mm (10.5 inches)
Rear BrakesSingle disc. Optional ABS.
Rear Brake Diameter282 mm (11.1 inches)
Wheels
Comments
Windshield. ABS adds 3 kg.
