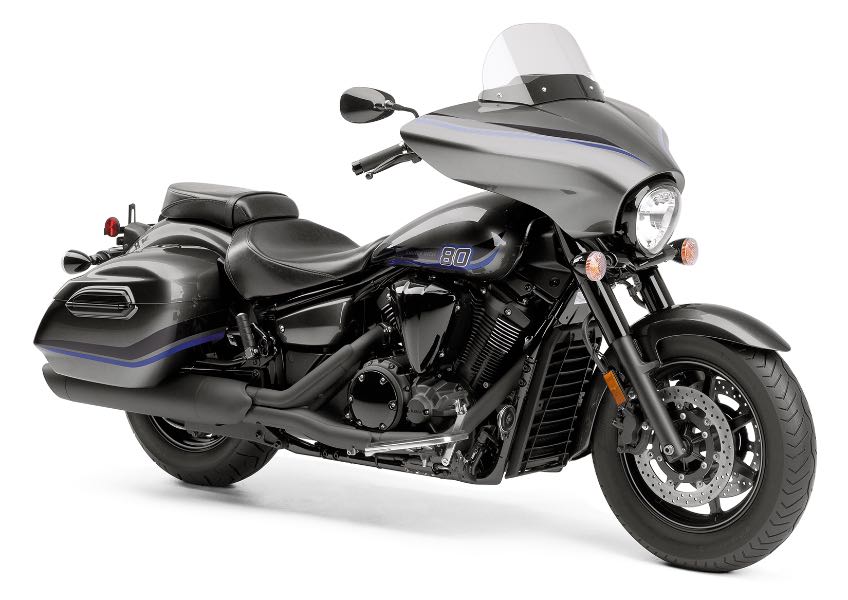

2016 Yamaha V Star 1300 Deluxe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Yamaha V Star 1300 Deluxe.

Basic Specs

Year2016
MakeYamaha
ModelYamaha V Star 1300 Deluxe
CostUS$ 14090. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1311.05 ccm (80.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTransistor Controlled Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchMultiplate wet clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.55 litres (4.90 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDouble Cradle
Rake
Trail
Front Suspension41mm Telescopic fork
Front Travel135 mm (5.3 inches)
Rear SuspensionSingle shock
Rear Travel109 mm (4.3 inches)
Seat
Seat Height691 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,489 mm (98.0 inches)
Total Width1,146 mm (45.1 inches)
Ground Clearance
Wheelbase1,689 mm (66.5 inches)
Dry Weight
Wet Weight325.2 kg (717.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre170/70-B16
Front BrakesDouble disc. Hydraulic.
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter298 mm (11.7 inches)
Wheels7-spoke aluminum

Comments

It appears you're interested in specifications for the Yamaha V Star 1300 Deluxe. This Touring model is powered by a V2, four-stroke engine with 1311.05 ccm (80.00 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Yamaha V Star 1300 Deluxe is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 170/70-B16 . The entire package is supported by the frame, Double Cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. front brakes and Single disc. Hydraulic. rear brakes. The Yamaha V Star 1300 Deluxe was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windscreen.
