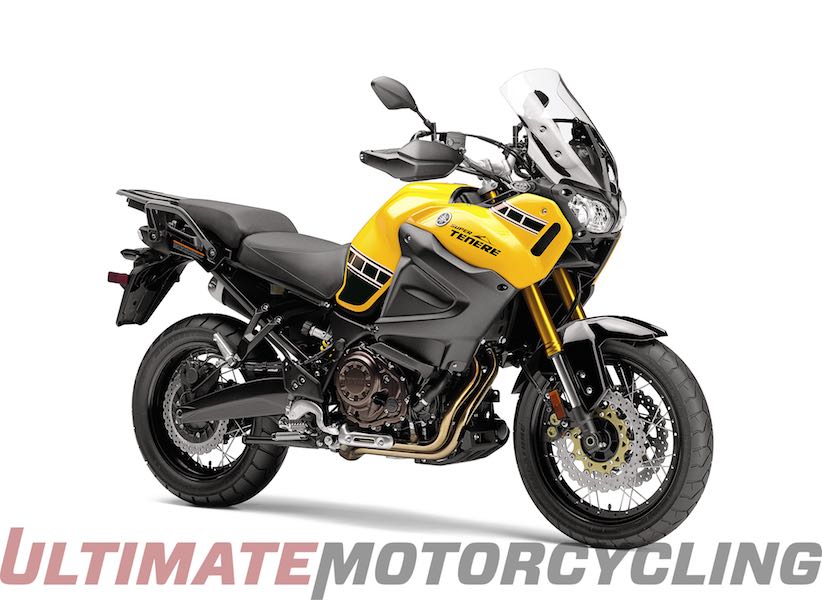

2016 Yamaha XT1200Z Super Tenere Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Yamaha XT1200Z Super Tenere.

Basic Specs

Year2016
MakeYamaha
ModelYamaha XT1200Z Super Tenere
Cost Euro 12995. UK £ 10999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1199.00 ccm (73.16 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke98.0 x 79.5 mm (3.9 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Fuel Injection with YCC-T
IgnitionTCI: Transistor Controlled Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineConstant mesh

Performance

Horespower112.00 HP (81.8 kW)
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity23.09 litres (6.10 gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake28.0°
Trail
Front SuspensionTelescopic fork, 43mm tube, adjustable preload, compression and rebound damping, 7.5-in travel
Front Travel191 mm (7.5 inches)
Rear SuspensionMonoshock, adjustable preload and rebound damping, 7.5-in of travel
Rear Travel191 mm (7.5 inches)
Seat
Seat Height846 mm (33.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,410 mm (55.5 inches)
Total Length2,256 mm (88.8 inches)
Total Width980 mm (38.6 inches)
Ground Clearance
Wheelbase1,539 mm (60.6 inches)
Dry Weight
Wet Weight262.2 kg (578.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-R19
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. ABS. Hydraulic.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha XT1200Z Super Tenere. This Super motard model is powered by a Twin, four-stroke engine with 1199.00 ccm (73.16 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Fuel Injection with YCC-T allowing this machine to produce its 112.00 HP (81.8 kW) horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the Yamaha XT1200Z Super Tenere is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/80-R19 and the rear is 150/70-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Hydraulic. front brakes and Single disc rear brakes. The Yamaha XT1200Z Super Tenere was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
