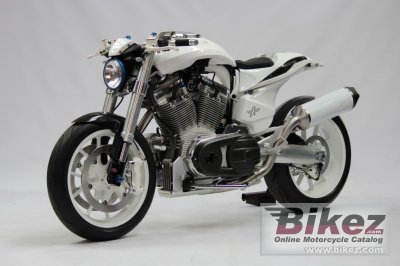

2017 Avinton Originale Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Avinton Originale.

Basic Specs

Year2017
MakeAvinton
ModelAvinton Originale
Cost

Engine

Displacement1647.00 ccm (100.50 cubic inches)
TypeS and S V-Twin at 45 degree. 4 camshafts.
DetailsV2, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke101.6 x 101.0 mm (4.0 x 4.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically
IgnitionCDI
ExhaustOriginal aluminium silencer Avinton by Arrow
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch10 dry disks with pressure diaphragms
DrivelineKevlar belt primary

Performance

Horespower120.00 HP (87.6 kW)
Torque168.00 Nm (17.1 kgf-m or 123.9 ft.lbs)
Top Speed262.0 km/h (162.8 mph)

Fuel Economy & Polution

Fuel Consumption5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Fuel Capacity13.00 litres (3.43 gallons)
Emissions125.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular with suspended engine, oil circuit integrated in the frame
Rake22.0°
Trail85 mm (3.3 inches)
Front SuspensionInverted adjustable oversized Ceriani fork
Front Travel100 mm (3.9 inches)
Rear SuspensionSachs monoshock
Rear Travel125 mm (4.9 inches)
SeatSport seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,380 mm (54.3 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight192.0 kg (423.3 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesSingle disc. AJP 6 piston calipe
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsForged and machined aluminium wheels

Comments

It appears you're interested in specifications for the Avinton Originale. This Naked bike model is powered by a S and S V-Twin at 45 degree. 4 camshafts. V2, four-stroke engine with 1647.00 ccm (100.50 cubic inches) of actual displacement before 10.3:1 compression. Fueling is metered via Carburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically allowing this machine to produce its 120.00 HP (87.6 kW) horsepower and 168.00 Nm (17.1 kgf-m or 123.9 ft.lbs) torque. According to our records engine heat of the Avinton Originale is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Tubular with suspended engine, oil circuit integrated in the frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. AJP 6 piston calipe front brakes and Single disc rear brakes. The Avinton Originale was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

French brand.
