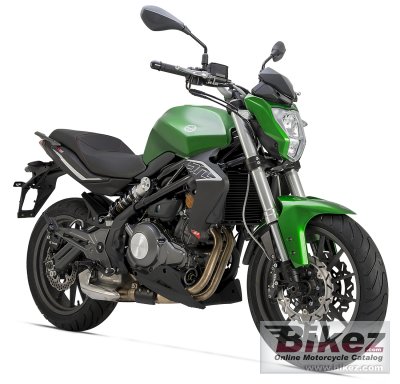

2017 Benelli BN 302 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Benelli BN 302.

Basic Specs

Year2017
MakeBenelli
ModelBenelli BN 302
Cost

Engine

Displacement300.00 ccm (18.31 cubic inches)
TypeHorizontal cylinder
DetailsTwin, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke57.4 x 57.8 mm (2.3 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. Two throttle bodies ø37 mm
IgnitionDelphi MT05
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet clutch
Driveline

Performance

Horespower38.00 HP (27.7 kW)
Torque27.40 Nm (2.8 kgf-m or 20.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame TypeSteel trestle in steel tubes
Rake
Trail
Front SuspensionInverted hydraulic damping shock absorber ø41 mm
Front Travel
Rear SuspensionRear swing arm in steel pipes, rear shock absorber with spring preload adjustmen
Rear Travel
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,130 mm (83.9 inches)
Total Width800 mm (31.5 inches)
Ground Clearance175 mm (6.9 inches)
Wheelbase1,405 mm (55.3 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight196.0 kg (432.1 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. 4 pistons caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. 2 pistons caliper
Rear Brake Diameter240 mm (9.4 inches)
WheelsAluminum alloy

Comments

It appears you're interested in specifications for the Benelli BN 302. This Naked bike model is powered by a Horizontal cylinder Twin, four-stroke engine with 300.00 ccm (18.31 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Two throttle bodies ø37 mm allowing this machine to produce its 38.00 HP (27.7 kW) horsepower and 27.40 Nm (2.8 kgf-m or 20.2 ft.lbs) torque. According to our records engine heat of the Benelli BN 302 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Steel trestle in steel tubes. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4 pistons caliper front brakes and Single disc. 2 pistons caliper rear brakes. The Benelli BN 302 was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
