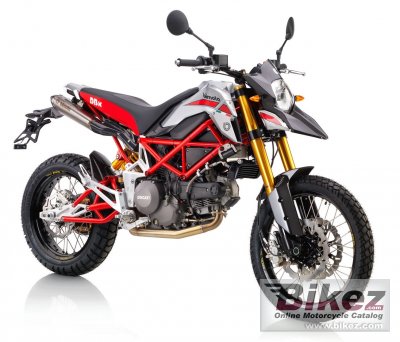

2017 Bimota DBx 1100 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Bimota DBx 1100.

Basic Specs

Year2017
MakeBimota
ModelBimota DBx 1100
Cost

Engine

Displacement1078.00 ccm (65.78 cubic inches)
TypeDucati 1100DS engine. L-twin.
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Magneti Marelli-45mm throttle body
IgnitionWalbro by Bimota
Exhaust
LubricationWet sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchDry multidisc
Driveline

Performance

Horespower98.00 HP (71.5 kW)
Torque105.00 Nm (10.7 kgf-m or 77.4 ft.lbs)
Top Speed220.0 km/h (136.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions

Chassis

Frame TypeTubular chrome-molybdenum steel
Rake
Trail
Front SuspensionÖhlins TTX fully adjustable forks
Front Travel
Rear SuspensionÖhlins TTX preload-fully adjustable top and lower speed monoshock
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,465 mm (57.7 inches)
Dry Weight174.6 kg (384.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-19
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsWire spoked, forged aluminium rims

Comments

It appears you're interested in specifications for the Bimota DBx 1100. This Super motard model is powered by a Ducati 1100DS engine. L-twin. V2, four-stroke engine with 1078.00 ccm (65.78 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Magneti Marelli-45mm throttle body allowing this machine to produce its 98.00 HP (71.5 kW) horsepower and 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) torque. According to our records engine heat of the Bimota DBx 1100 is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-19 and the rear is 180/55-17 . The entire package is supported by the frame, Tubular chrome-molybdenum steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers front brakes and Single disc. 2-piston rear brakes. The Bimota DBx 1100 was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
