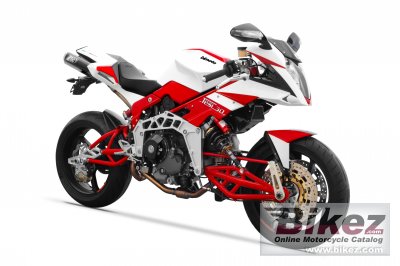

These are the known mechanical and performance specifications for your 2017 Bimota Tesi 3D Evo.
Basic Specs
Engine
Displacement1078.00 ccm (65.78 cubic inches)
TypeDucati L-Twin EVO
DetailsV2, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Walbro By Bimota
Ignition
Exhaust
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchDry Clutch, multi-disc
Driveline
Performance
Horespower98.00 HP (71.5 kW)
Torque105.00 Nm (10.7 kgf-m or 77.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions
Chassis
Frame TypeCNC milled aluminium plates, Chrome-molybdenum gridframe and carbon fibre
Rake23.0°
Trail
Front SuspensionExtreme Tech tension loaded, adj. traction and compression unit
Front Travel
Rear SuspensionExtreme Tech adjustable traction and compression unit, Pre-loaded spring
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,100 mm (82.7 inches)
Total Width700 mm (27.6 inches)
Ground Clearance
Wheelbase1,390 mm (54.7 inches)
Dry Weight167.0 kg (368.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Bremo 4-piston, four separates pads, radial pump
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo, 2-piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsForged Aluminium Alloy, black 5-spoke
Comments
Italian brand.
