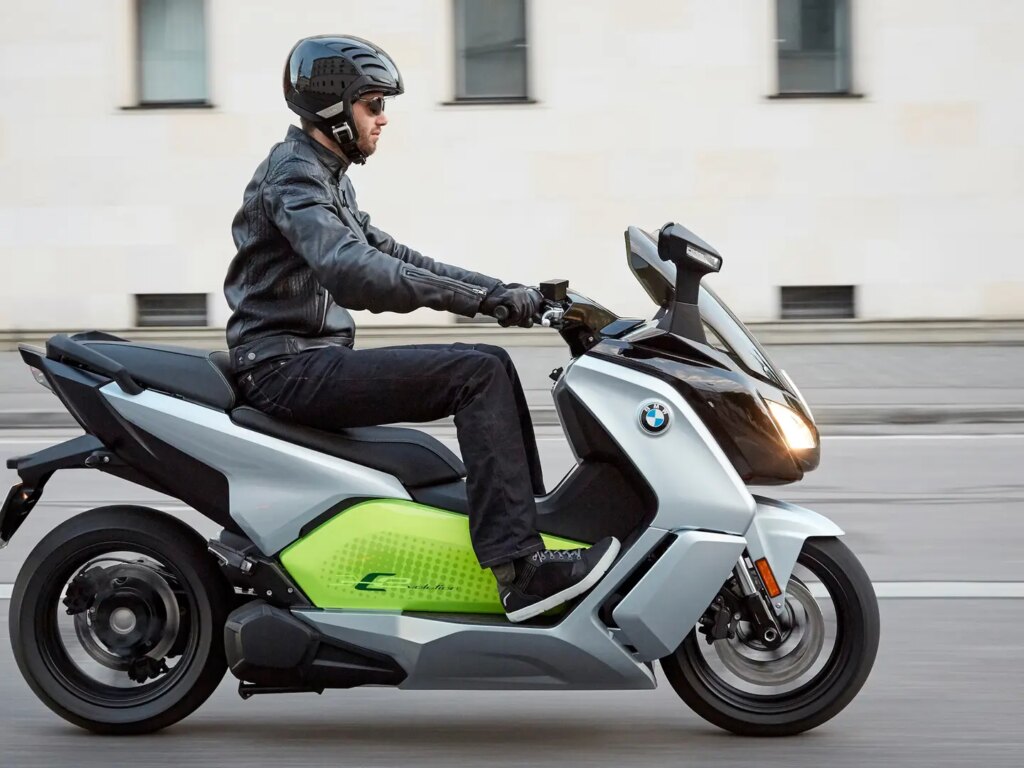

2017 BMW C Evolution Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 BMW C Evolution.

Basic Specs

Year2017
MakeBMW
ModelBMW C Evolution
Cost

Engine

Displacement
TypeDrive train swing arm with liquid-cooled alternator; permanently excited synchronous machine with surface magnets, internal rotor
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower48.00 HP (35.0 kW)
Torque72.00 Nm (7.3 kgf-m or 53.1 ft.lbs)
Top Speed120.0 km/h (74.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeHybrid chassis with die-cast aluminium load-bearing battery casing, bolt-on tubular-steel stearing head carrier and rear frame
Rake24.1°
Trail95 mm (3.7 inches)
Front SuspensionUpside-down fork 40 mm
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle-sided swing arm with direct-link spring strut, spring pre-load manually adjustable over 7 settings
Rear Travel115 mm (4.5 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,301 mm (51.2 inches)
Total Length2,190 mm (86.2 inches)
Total Width947 mm (37.3 inches)
Ground Clearance
Wheelbase1,594 mm (62.8 inches)
Dry Weight285.0 kg (628.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-15
Rear Tire/Tyre160/60-15
Front BrakesDouble disc. ABS. Floating discs. Two-piston calipers.
Front Brake Diameter270 mm (10.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter270 mm (10.6 inches)
WheelsCast aluminum wheels

Comments

It appears you're interested in specifications for the BMW C Evolution. This Scooter model is powered by a Drive train swing arm with liquid-cooled alternator; permanently excited synchronous machine with surface magnets, internal rotor Electric engine with of actual displacement before compression. Fueling is metered via allowing this machine to produce its 48.00 HP (35.0 kW) horsepower and 72.00 Nm (7.3 kgf-m or 53.1 ft.lbs) torque. According to our records engine heat of the BMW C Evolution is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-15 and the rear is 160/60-15 . The entire package is supported by the frame, Hybrid chassis with die-cast aluminium load-bearing battery casing, bolt-on tubular-steel stearing head carrier and rear frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Two-piston calipers. front brakes and Single disc. ABS. Floating disc. Two-piston calipers. rear brakes. The BMW C Evolution was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

8 kWh lithium-ion battery. (3 modules, twelve 60 Ah cells per module. Range 62 miles. Windscreen.
