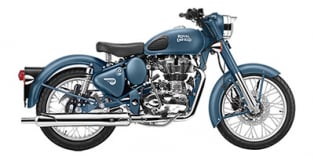

2017 Enfield Classic Squadron Blue Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Enfield Classic Squadron Blue.

Basic Specs

Year2017
MakeEnfield
ModelEnfield Classic Squadron Blue
Cost

Engine

Displacement499.00 ccm (30.45 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke84.0 x 90.0 mm (3.3 x 3.5 inches)
Valves/Cylinder
FuelingInjection. Keihin EFI
IgnitionDigital
ExhaustChrome
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMulitiplate
DrivelineConstant mesh

Performance

Horespower27.20 HP (19.9 kW)
Torque41.30 Nm (4.2 kgf-m or 30.5 ft.lbs)
Top Speed120.0 km/h (74.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions

Chassis

Frame TypeSingle downtube, using engine as stressed member
Rake
Trail
Front SuspensionTelescopic, 35mm forks,
Front Travel130 mm (5.1 inches)
Rear SuspensionTwin gas charged shock absorbers with 5-step adjustable preload
Rear Travel80 mm (3.1 inches)
SeatSolo seat with springs.
Seat Height
Alt. Seat Height
Total Height1,090 mm (42.9 inches)
Total Length2,140 mm (84.3 inches)
Total Width790 mm (31.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,360 mm (53.5 inches)
Dry Weight
Wet Weight187.0 kg (412.3 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-18
Rear Tire/Tyre110/90-18
Front BrakesSingle disc. 2-Piston caliper
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter153 mm (6.0 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Enfield Classic Squadron Blue. This Classic model is powered by a Single cylinder, four-stroke engine with 499.00 ccm (30.45 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Injection. Keihin EFI allowing this machine to produce its 27.20 HP (19.9 kW) horsepower and 41.30 Nm (4.2 kgf-m or 30.5 ft.lbs) torque. According to our records engine heat of the Enfield Classic Squadron Blue is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-18 and the rear is 110/90-18 . The entire package is supported by the frame, Single downtube, using engine as stressed member. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-Piston caliper front brakes and Expanding brake (drum brake) rear brakes. The Enfield Classic Squadron Blue was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in India. Brand full name is Royal Enfield.
