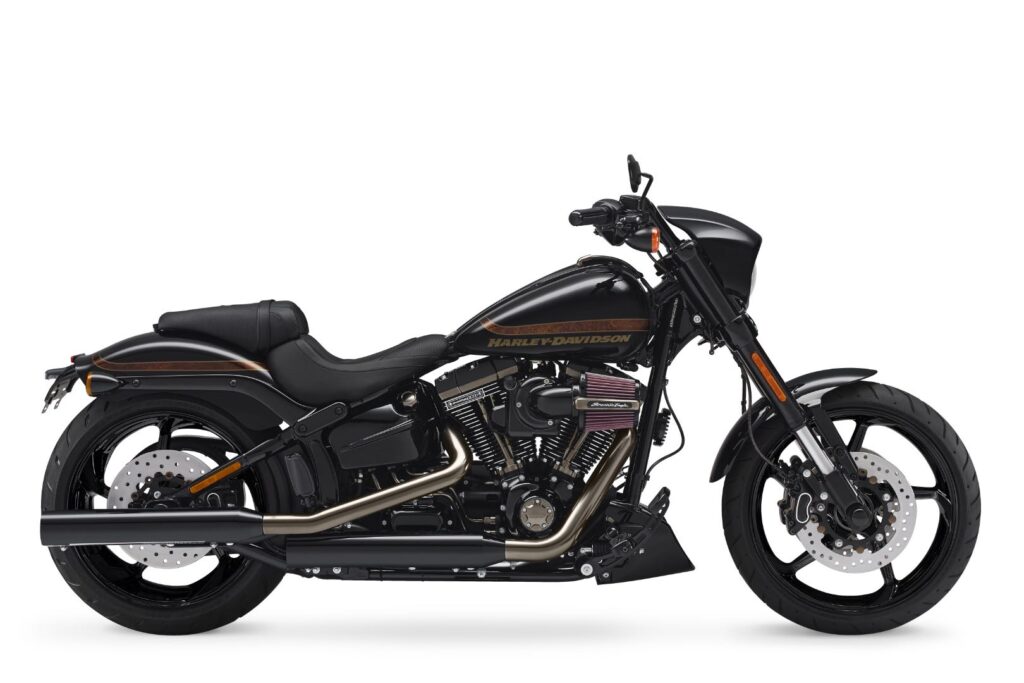

2017 Harley-Davidson CVO Pro Street Breakout Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Harley-Davidson CVO Pro Street Breakout.

Basic Specs

Year2017
MakeHarley-Davidson
ModelHarley-Davidson CVO Pro Street Breakout
CostUS$ 25799. Euro 2745. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1801.00 ccm (109.90 cubic inches)
TypeScreamin´ Eagle® Twin Cam 110B™
DetailsV2, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustBlacked-out staggered blunt cut mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower92.00 HP (67.2 kW)
Torque151.00 Nm (15.4 kgf-m or 111.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity18.90 litres (4.99 gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake35.0°
Trail196 mm (7.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,330 mm (91.7 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,680 mm (66.1 inches)
Dry Weight318.0 kg (701.1 pounds)
Wet Weight332.0 kg (731.9 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston
Rear Brake Diameter
WheelsGloss Black Turbine with machined highlights

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Pro Street Breakout. This Custom / cruiser model is powered by a Screamin´ Eagle® Twin Cam 110B™ V2, four-stroke engine with 1801.00 ccm (109.90 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 92.00 HP (67.2 kW) horsepower and 151.00 Nm (15.4 kgf-m or 111.4 ft.lbs) torque. According to our records engine heat of the Harley-Davidson CVO Pro Street Breakout is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 240/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. 4-piston front brakes and Single disc. ABS. 2-piston rear brakes. The Harley-Davidson CVO Pro Street Breakout was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
