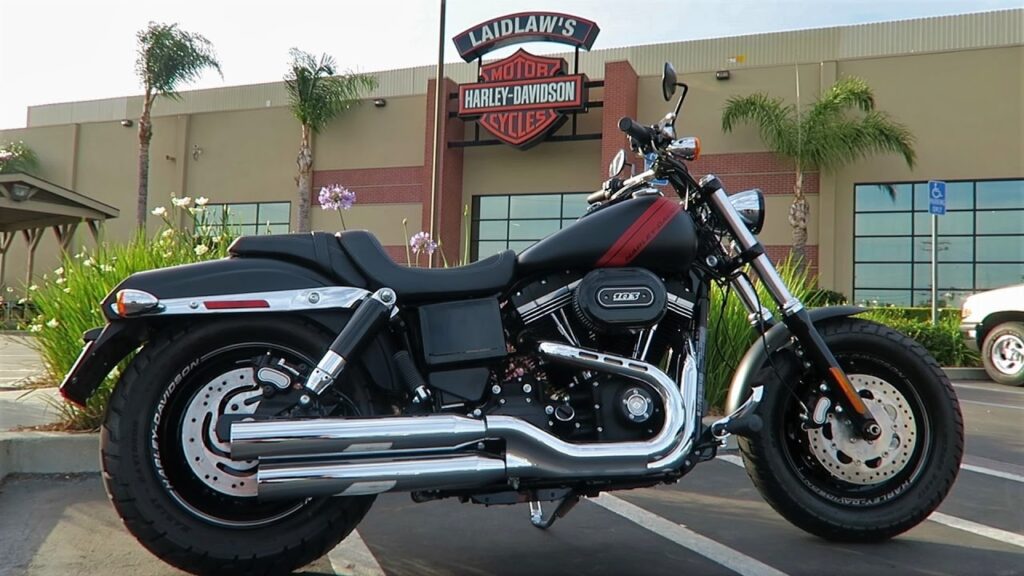

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Dyna Fat Bob.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Dyna Fat Bob
TypeCustom / cruiser
CostUS$ 16049. Euro 17295. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeTwin Cam 103
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower80.00 HP (58.4 kW)
Torque130.00 Nm (13.3 kgf-m or 95.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake29.0°
Trail125 mm (4.9 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height705 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,400 mm (94.5 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,621 mm (63.8 inches)
Dry Weight307.0 kg (676.8 pounds)
Wet Weight320.0 kg (705.5 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-B16
Rear Tire/Tyre180/70-B16
Front BrakesDouble disc. 4-piston fixed. Optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. 2-piston torque-free floating. Optional ABS.
Rear Brake Diameter
WheelsGloss Black Cast Aluminum Wheel w/Laser Etched Graphics
