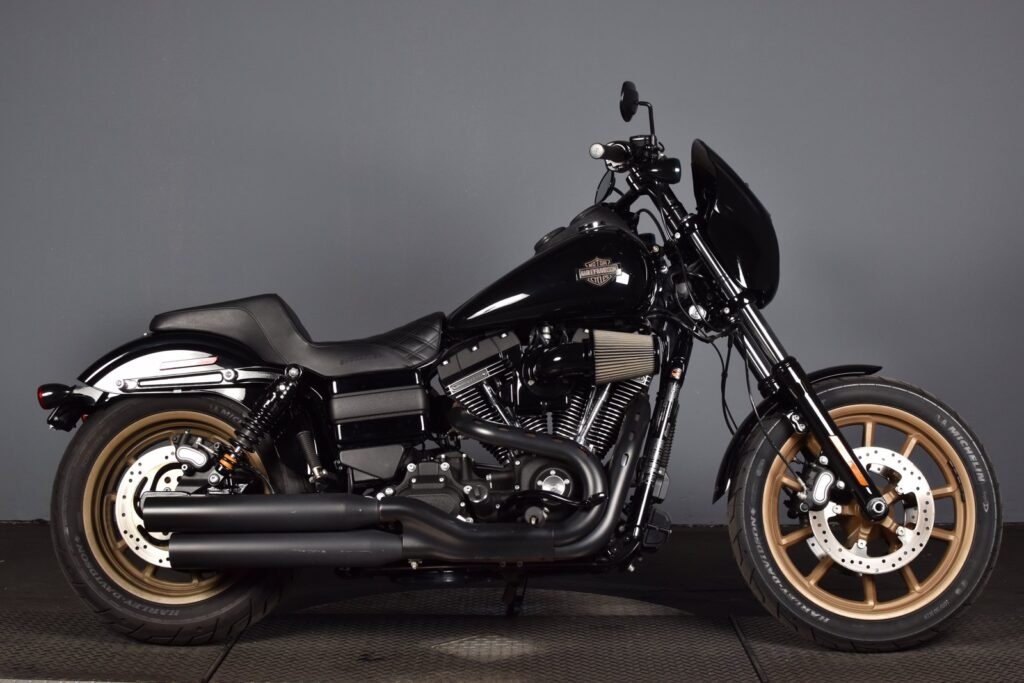

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Dyna Low Rider S.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Dyna Low Rider S
TypeCustom / cruiser
CostUS$ 17499. Euro 19995. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1801.00 ccm (109.90 cubic inches)
TypeScreamin Eagle® Twin Cam 110
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustBlacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
LubricationDry sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 57/38 ratio
Performance
Horespower97.00 HP (70.8 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.10 litres/100 km (19.6 km/l or 46.12 mpg)
Fuel Capacity17.80 litres (4.70 gallons)
Emissions118.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.5°
Trail128 mm (5.0 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height685 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,390 mm (94.1 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight293.0 kg (646.0 pounds)
Wet Weight305.0 kg (672.4 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-B19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc. ABS, 4-piston fixed.
Front Brake Diameter
Rear BrakesSingle disc. ABS, 2-piston torque-free floating
Rear Brake Diameter
WheelsMagnum Gold, Split 5-Spoke Cast Aluminum
