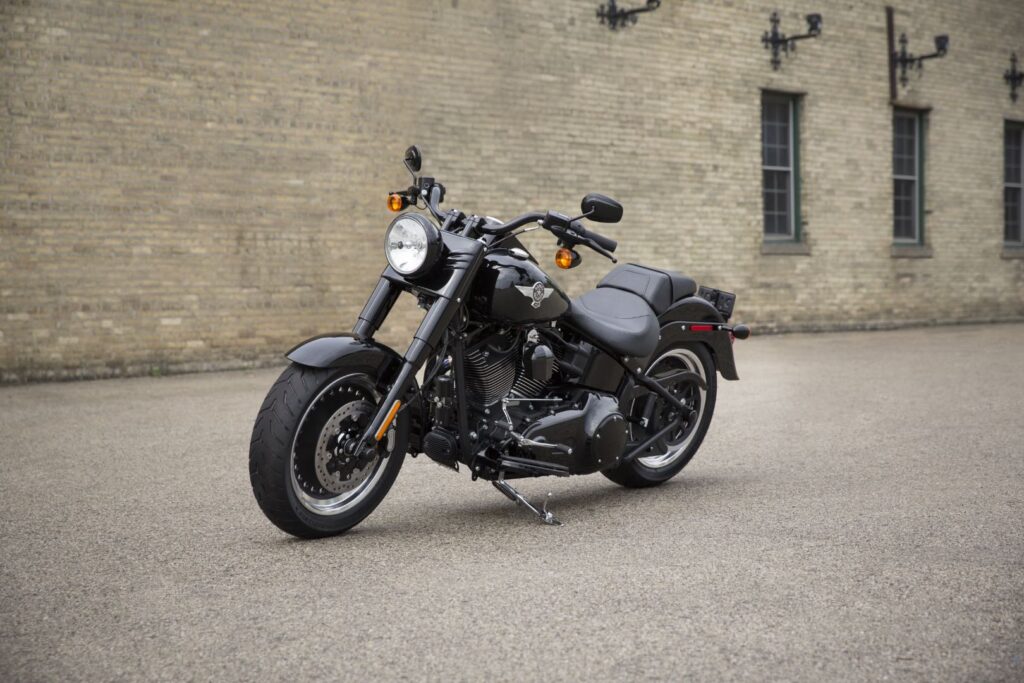

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Fat Boy Special.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Fat Boy Special
TypeCustom / cruiser
Cost Euro 21299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeHigh Output Twin Cam 103B
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustShotgun exhaust, black denim
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower75.00 HP (54.7 kW)
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake31.0°
Trail147 mm (5.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,385 mm (93.9 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight320.0 kg (705.5 pounds)
Wet Weight333.0 kg (734.1 pounds)
Wheels & Brakes
Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front BrakesDouble disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston.
Rear Brake Diameter
WheelsBlack, Bullet Hole Disc Cast Aluminum
Comments
Sold in Europe
