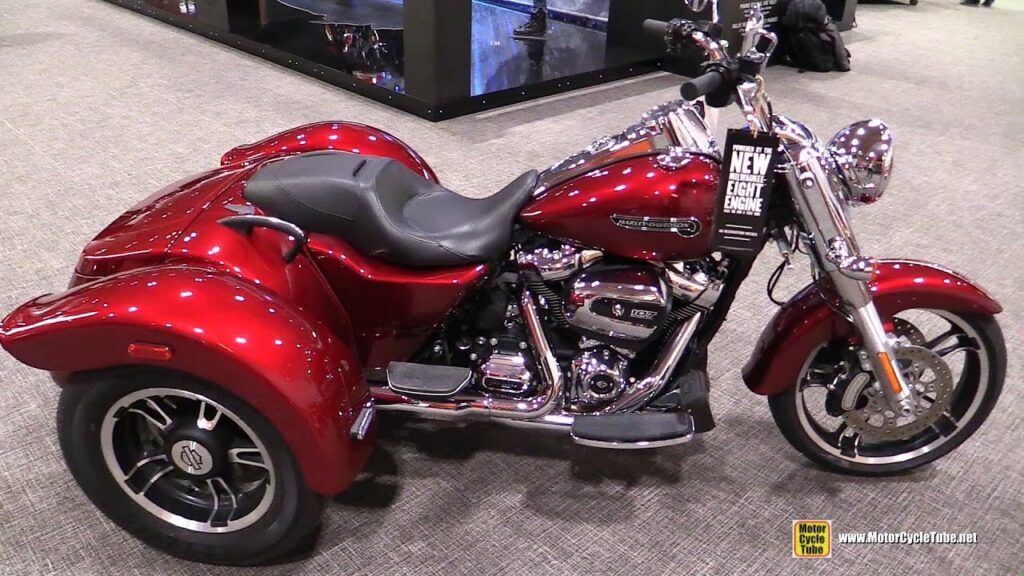

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Freewheeler.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Freewheeler
TypeCustom / cruiser
CostUS$ 26339. Euro 30495. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1747.00 ccm (106.60 cubic inches)
TypeMilwaukee-Eight™ 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustShorty slash down-style chrome finish mufflers
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower88.00 HP (64.2 kW)
Torque150.00 Nm (15.3 kgf-m or 110.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.03 litres/100 km (16.6 km/l or 39.01 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions139.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail101 mm (4.0 inches)
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,615 mm (103.0 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,670 mm (65.7 inches)
Dry Weight492.0 kg (1,084.7 pounds)
Wet Weight507.0 kg (1,117.7 pounds)
Wheels & Brakes
Front Tire/Tyre130/60-B19
Rear Tire/Tyre205/65-R17
Front BrakesDouble disc. 6 piston.
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsEnforcer Cast Aluminum
Comments
Trike. Cruise control. Foot actuated dual parking brake.
