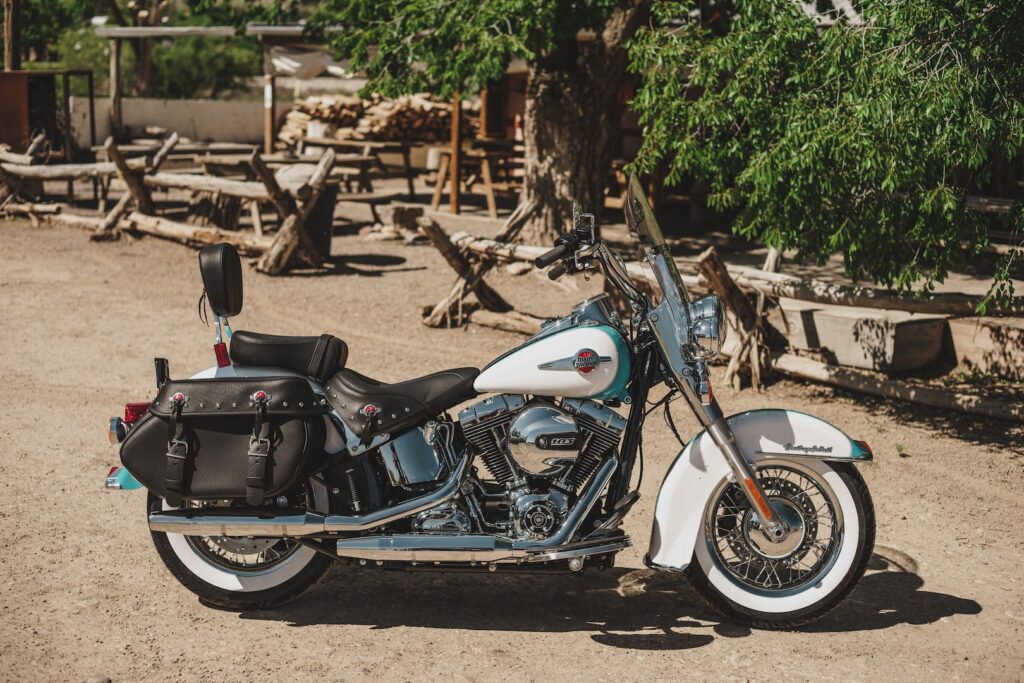

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Heritage Softail Classic.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Heritage Softail Classic
TypeTouring
CostUS$ 17549. Euro 22495. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeHigh Output Twin Cam 103B
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower78.00 HP (56.9 kW)
Torque125.00 Nm (12.7 kgf-m or 92.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake31.0°
Trail147 mm (5.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,405 mm (94.7 inches)
Total Width
Ground Clearance131 mm (5.2 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight333.0 kg (734.1 pounds)
Wet Weight347.0 kg (765.0 pounds)
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston.
Rear Brake Diameter
WheelsSteel laced, optional whitewall tires
Comments
Windshield
