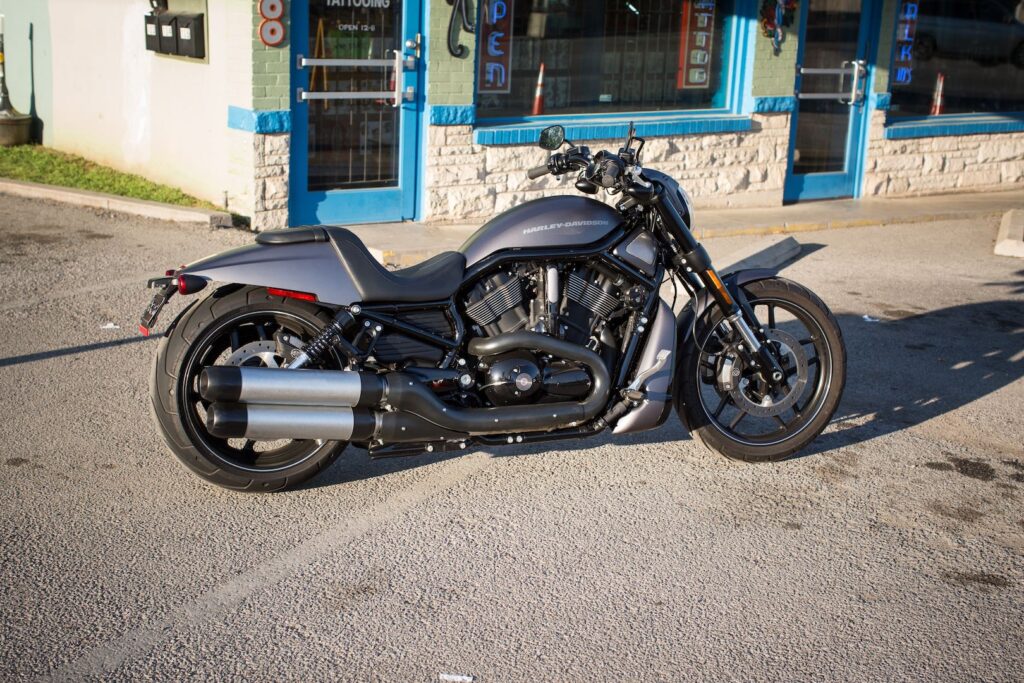

2017 Harley-Davidson Night Rod Special Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Night Rod Special.

Basic Specs

Year2017
MakeHarley-Davidson
ModelHarley-Davidson Night Rod Special
CostUS$ 18749. Euro 18590. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1247.00 ccm (76.09 cubic inches)
TypeRevolution®, 60° V-Twin
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke105.0 x 72.0 mm (4.1 x 2.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustStraight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineGear, 117/64 ratio primary drive

Performance

Horespower120.69 HP (88.1 kW)
Torque111.00 Nm (11.3 kgf-m or 81.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.36 litres/100 km (15.7 km/l or 36.98 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions147.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake34.0°
Trail142 mm (5.6 inches)
Front SuspensionInverted fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height675 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,440 mm (96.1 inches)
Total Width
Ground Clearance115 mm (4.5 inches)
Wheelbase1,705 mm (67.1 inches)
Dry Weight289.0 kg (637.1 pounds)
Wet Weight302.0 kg (665.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR19
Rear Tire/Tyre240/40-R18
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsBlack, Split 5-Spoke Cast Aluminum w/machined pinstripe Standard on Select Colors

Comments

It appears you're interested in specifications for the Harley-Davidson Night Rod Special. This Naked bike model is powered by a Revolution®, 60° V-Twin V2, four-stroke engine with 1247.00 ccm (76.09 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 120.69 HP (88.1 kW) horsepower and 111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Night Rod Special is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR19 and the rear is 240/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The Harley-Davidson Night Rod Special was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
