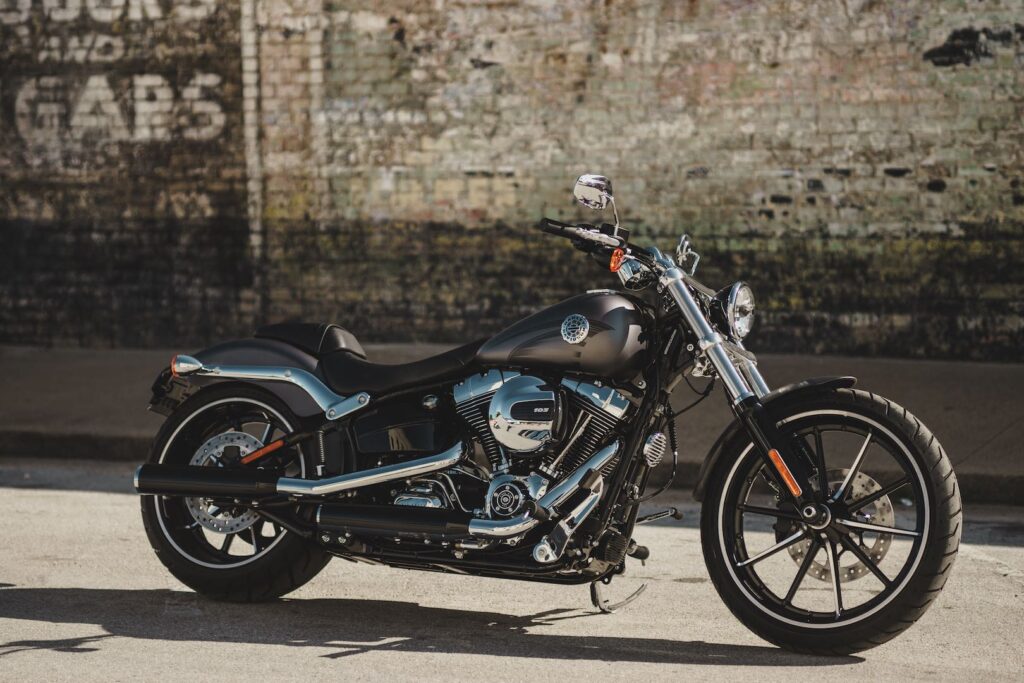

2017 Harley-Davidson Softail Breakout Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Softail Breakout.

Basic Specs

Year2017
MakeHarley-Davidson
ModelHarley-Davidson Softail Breakout
CostUS$ 19299. Euro 21295. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1690.00 ccm (103.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustStaggered, straight cut chrome mufflers with gloss black muffler shields
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower75.00 HP (54.7 kW)
Torque125.00 Nm (12.7 kgf-m or 92.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake35.0°
Trail146 mm (5.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,385 mm (93.9 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,710 mm (67.3 inches)
Dry Weight309.0 kg (681.2 pounds)
Wet Weight322.0 kg (709.9 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B21
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston
Rear Brake Diameter
WheelsGloss Black Turbine with machined highlights

Comments

It appears you're interested in specifications for the Harley-Davidson Softail Breakout. This Custom / cruiser model is powered by a V2, four-stroke engine with 1690.00 ccm (103.12 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 75.00 HP (54.7 kW) horsepower and 125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Softail Breakout is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B21 and the rear is 240/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. 4-piston front brakes and Single disc. ABS. 2-piston rear brakes. The Harley-Davidson Softail Breakout was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
