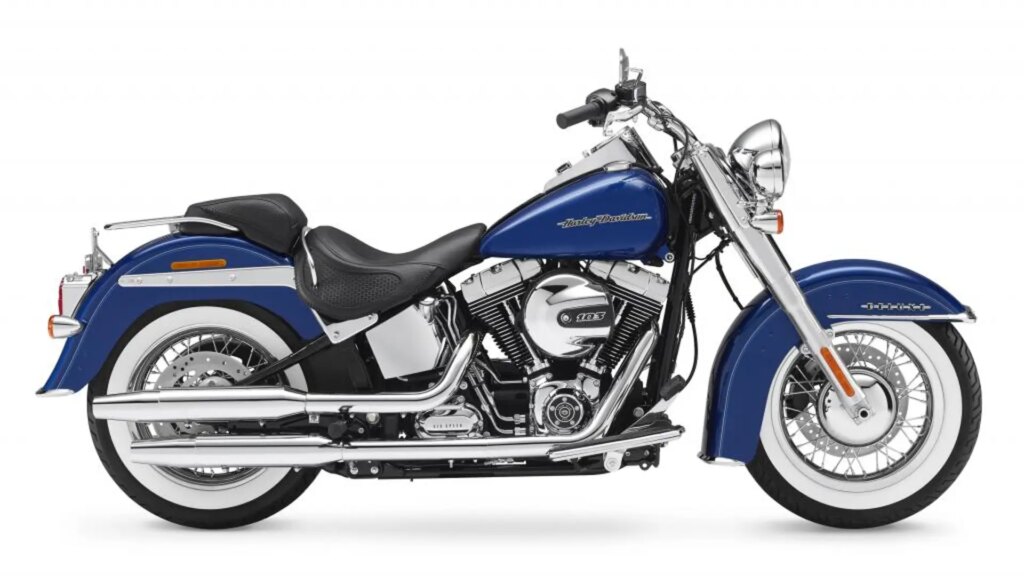

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Softail Deluxe.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Softail Deluxe
TypeCustom / cruiser
CostUS$ 18549. Euro 21395. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1690.00 ccm (103.12 cubic inches)
TypeHigh Output Twin Cam 103B
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, straight over/under shotgun exhaust with dual tapered mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower79.00 HP (57.7 kW)
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake32.1°
Trail147 mm (5.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height670 mm (26.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,400 mm (94.5 inches)
Total Width
Ground Clearance113 mm (4.4 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight320.0 kg (705.5 pounds)
Wet Weight333.0 kg (734.1 pounds)
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston
Rear Brake Diameter
WheelsSteel Laced, Optional Chrome Aluminum Profile Laced
