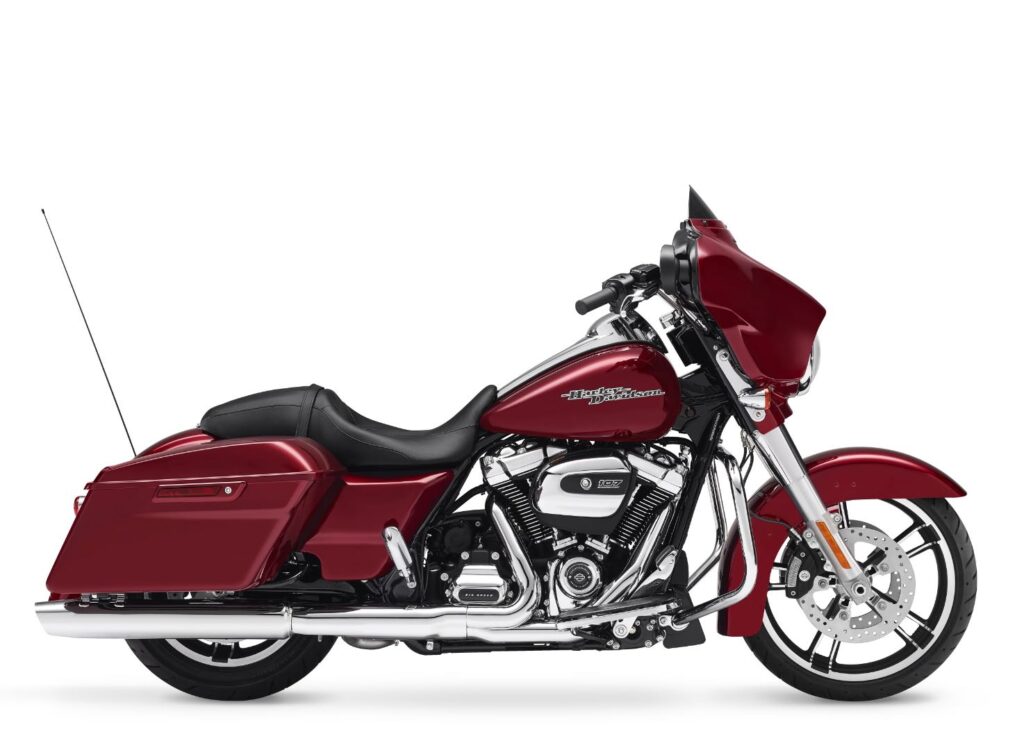

2017 Harley-Davidson Street Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Street Glide.

Basic Specs

Year2017
MakeHarley-Davidson
ModelHarley-Davidson Street Glide
CostUS$ 20999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1753.52 ccm (107.00 cubic inches)
TypeMilwaukee-Eight™ 107
DetailsV2, four-stroke
Max RPM
Compression1.0:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower85.83 HP (62.6 kW)
Torque154.58 Nm (15.8 kgf-m or 114.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height715 mm (28.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,450 mm (96.5 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight353.0 kg (778.2 pounds)
Wet Weight371.0 kg (817.9 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. Optional ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. 4-piston
Rear Brake Diameter
WheelsEnforcer Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Street Glide. This Touring model is powered by a Milwaukee-Eight™ 107 V2, four-stroke engine with 1753.52 ccm (107.00 cubic inches) of actual displacement before 1.0:1 compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its 85.83 HP (62.6 kW) horsepower and 154.58 Nm (15.8 kgf-m or 114.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Street Glide is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 180/65-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS. 4-piston front brakes and Single disc. Optional ABS. 4-piston rear brakes. The Harley-Davidson Street Glide was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield. Cruise control. Infotainment.
