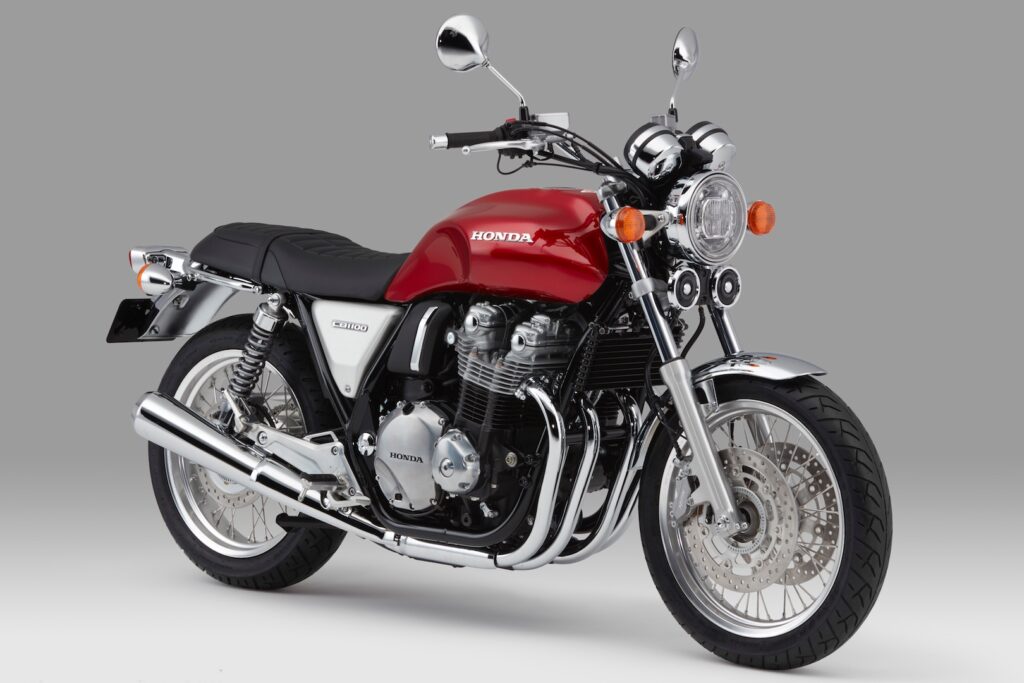

2017 Honda CB1100 EX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Honda CB1100 EX.

Basic Specs

Year2017
MakeHonda
ModelHonda CB1100 EX
Cost

Engine

Displacement1140.00 ccm (69.56 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke73.5 x 67.2 mm (2.9 x 2.6 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMulti-plate wet clutch
Driveline

Performance

Horespower88.51 HP (64.6 kW)
Torque91.00 Nm (9.3 kgf-m or 67.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.00 litres/100 km (16.7 km/l or 39.20 mpg)
Fuel Capacity17.50 litres (4.62 gallons)
Emissions139.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDouble steel cradle
Rake27.0°
Trail114 mm (4.5 inches)
Front Suspension41mm conventional fork with adjustable spring preload
Front Travel
Rear SuspensionTwin shocks with adjustable spring preload
Rear Travel
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length2,195 mm (86.4 inches)
Total Width834 mm (32.8 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight
Wet Weight260.0 kg (573.2 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-18
Rear Tire/Tyre140/70-18
Front BrakesDouble disc. Floating discs. Four-piston calipers. ABS.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Single-piston. ABS.
Rear Brake Diameter256 mm (10.1 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Honda CB1100 EX. This Classic model is powered by a In-line four, four-stroke engine with 1140.00 ccm (69.56 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection allowing this machine to produce its 88.51 HP (64.6 kW) horsepower and 91.00 Nm (9.3 kgf-m or 67.1 ft.lbs) torque. According to our records engine heat of the Honda CB1100 EX is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-18 and the rear is 140/70-18 . The entire package is supported by the frame, Double steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. Four-piston calipers. ABS. front brakes and Single disc. Single-piston. ABS. rear brakes. The Honda CB1100 EX was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
