2017 Honda CB1100TR Concept Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Honda CB1100TR Concept.

Basic Specs

Year2017
MakeHonda
ModelHonda CB1100TR Concept
Cost

Engine

Displacement1140.00 ccm (69.56 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke73.5 x 67.2 mm (2.9 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enrichment circuit, 32mm throttle bodies
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline#530 O-ring-sealed chain

Performance

Horespower88.51 HP (64.6 kW)
Torque91.00 Nm (9.3 kgf-m or 67.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.76 litres (3.90 gallons)
Emissions

Chassis

Frame TypeDouble steel cradle
Rake27.0°
Trail114 mm (4.5 inches)
Front Suspension41mm fork with spring preload adjustability
Front Travel
Rear SuspensionDual shocks with spring preload adjustability
Rear Travel
Seat
Seat Height792 mm (31.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,491 mm (58.7 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc. Floating discs. Four-piston calipers.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Single-piston caliper.
Rear Brake Diameter256 mm (10.1 inches)
WheelsCast wheels

Comments

It appears you're interested in specifications for the Honda CB1100TR Concept. This Prototype / concept model model is powered by a In-line four, four-stroke engine with 1140.00 ccm (69.56 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment circuit, 32mm throttle bodies allowing this machine to produce its 88.51 HP (64.6 kW) horsepower and 91.00 Nm (9.3 kgf-m or 67.1 ft.lbs) torque. According to our records engine heat of the Honda CB1100TR Concept is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Double steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. Four-piston calipers. front brakes and Single disc. Single-piston caliper. rear brakes. The Honda CB1100TR Concept was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

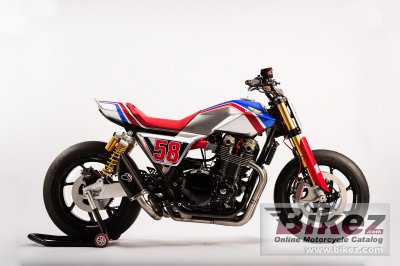

The number 58 honour the memory of Honda’s MotoGP rider Marco Simoncelli.
