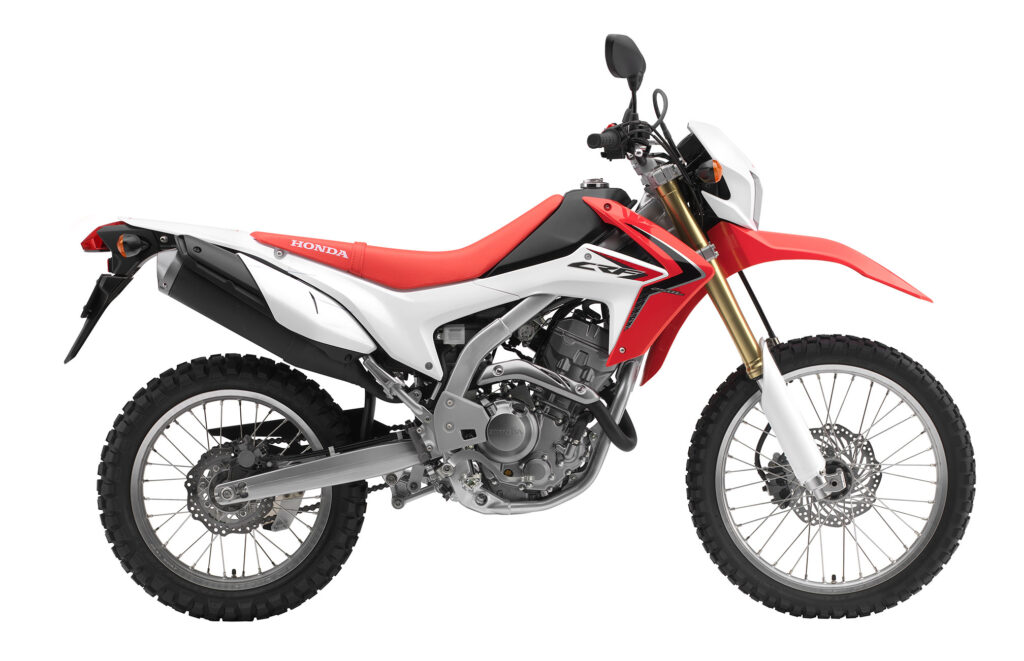

2017 Honda CRF250L ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Honda CRF250L ABS.

Basic Specs

Year2017
MakeHonda
ModelHonda CRF250L ABS
CostUS$ 5399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement249.60 ccm (15.23 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder
FuelingInjection. PGM-FI, 36mm throttle body
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate with coil springs
Driveline#520 chain; 14T/40T

Performance

Horespower22.80 HP (16.6 kW)
Torque22.00 Nm (2.2 kgf-m or 16.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.22 litres/100 km (31.1 km/l or 73.05 mpg)
Fuel Capacity7.57 litres (2.00 gallons)
Emissions74.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake27.4°
Trail113 mm (4.4 inches)
Front Suspension43mm inverted fork
Front Travel61 mm (2.4 inches)
Rear SuspensionPro-Link® single shock with spring; 9.4 inches travel
Rear Travel61 mm (2.4 inches)
Seat
Seat Height881 mm (34.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,195 mm (47.0 inches)
Total Length2,195 mm (86.4 inches)
Total Width815 mm (32.1 inches)
Ground Clearance254 mm (10.0 inches)
Wheelbase1,445 mm (56.9 inches)
Dry Weight
Wet Weight148.0 kg (326.3 pounds)

Wheels & Brakes

Front Tire/Tyre3.00-21
Rear Tire/Tyre120/80-18
Front BrakesDouble disc. ABS. Two-piston calipers.
Front Brake Diameter256 mm (10.1 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF250L ABS. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 249.60 ccm (15.23 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI, 36mm throttle body allowing this machine to produce its 22.80 HP (16.6 kW) horsepower and 22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) torque. According to our records engine heat of the Honda CRF250L ABS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.00-21 and the rear is 120/80-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Two-piston calipers. front brakes and Single disc. ABS rear brakes. The Honda CRF250L ABS was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF250LAH
