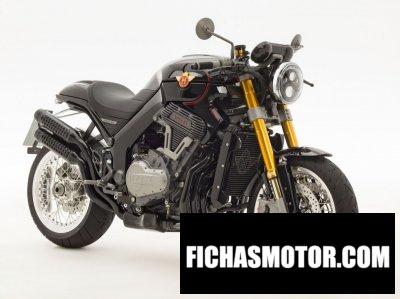

2017 Horex VR6 Cafe Racer Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Horex VR6 Cafe Racer.

Basic Specs

Year2017
MakeHorex
ModelHorex VR6 Cafe Racer
Cost Euro 42500. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1218.00 ccm (74.32 cubic inches)
TypeVR6 with only 15 degree V-angle mirrored cylinder offset. Triple overhead cam.
DetailsV6, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke68.2 x 55.4 mm (2.7 x 2.2 inches)
Valves/Cylinder3
FuelingInjection
Ignition
ExhaustPerformance stainless steel exhaust system with CAT box centre silencer unit and two stainless steel rear silencers
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMulti-disc oil bath clutch, operated hydraulically. 1:2.47 ratio.
Driveline

Performance

Horespower160.00 HP (116.8 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeCFRP stearing head frame. CFRP structural subframe.
Rake
Trail98 mm (3.9 inches)
Front SuspensionÖhlins upside-down fork (Ø 43 mm) with adjustable spring preload, compression and rebound damping
Front Travel120 mm (4.7 inches)
Rear SuspensionÖhlins TTX36 GP suspension struts with adjustable spring base, rebound and compression damping and built-in hydraulic spring preload adjustment
Rear Travel120 mm (4.7 inches)
SeatLeather single seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,475 mm (58.1 inches)
Dry Weight219.0 kg (482.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. ABS. Radial 4-piston calipers. Bremo.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. 2-piston caliper. Bremo
Rear Brake Diameter264 mm (10.4 inches)
WheelsAlloy spoke wheels

Comments

It appears you're interested in specifications for the Horex VR6 Cafe Racer. This Naked bike model is powered by a VR6 with only 15 degree V-angle mirrored cylinder offset. Triple overhead cam. V6, four-stroke engine with 1218.00 ccm (74.32 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 160.00 HP (116.8 kW) horsepower and 138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) torque. According to our records engine heat of the Horex VR6 Cafe Racer is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, CFRP stearing head frame. CFRP structural subframe.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Radial 4-piston calipers. Bremo. front brakes and Single disc. ABS. 2-piston caliper. Bremo rear brakes. The Horex VR6 Cafe Racer was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

German brand.
