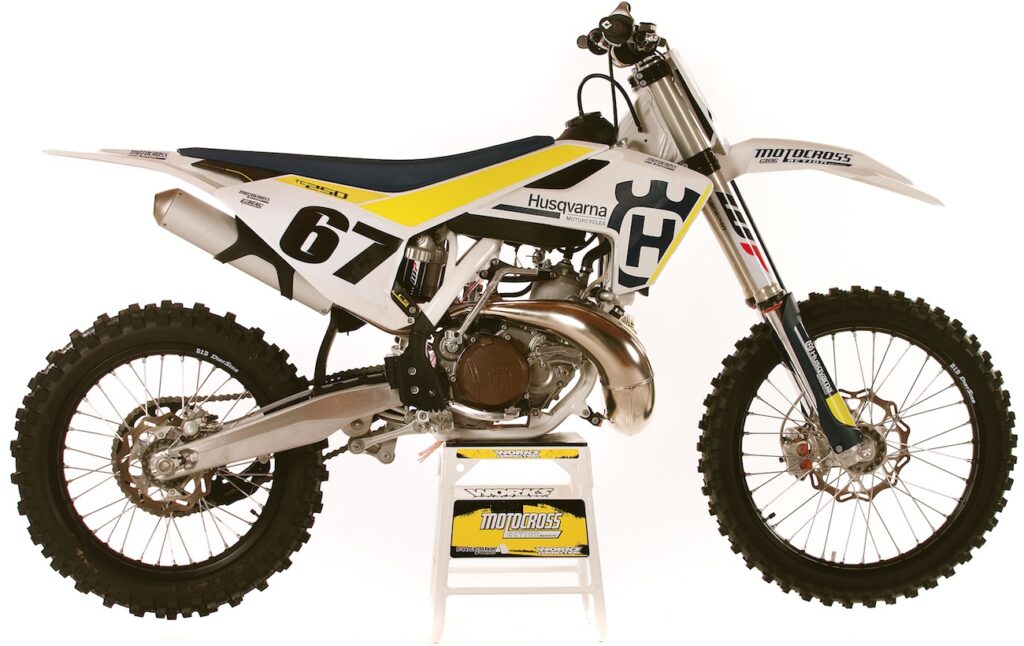

2017 Husqvarna TC 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Husqvarna TC 250.

Basic Specs

Year2017
MakeHusqvarna
ModelHusqvarna TC 250
Cost

Engine

Displacement249.50 ccm (15.22 cubic inches)
TypeReed valves
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
Fueling
IgnitionKokusan EMS
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet, multi-disc clutch, Magura hydraulics
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions

Chassis

Frame TypeChrome-molybdenum steel central-tube frame
Rake26.5°
Trail
Front SuspensionWP-USD, AER 48, Ø 48 mm
Front Travel310 mm (12.2 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height992 mm (39.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance385 mm (15.2 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight97.7 kg (215.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre120/90-19
Front BrakesSingle disc. Brembo twin-piston floating calliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper
Rear Brake Diameter200 mm (7.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna TC 250. This Cross / motocross model is powered by a Reed valves Single cylinder, two-stroke engine with 249.50 ccm (15.22 cubic inches) of actual displacement before compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna TC 250 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 120/90-19 . The entire package is supported by the frame, Chrome-molybdenum steel central-tube frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brembo twin-piston floating calliper front brakes and Single disc. Brembo single-piston floating calliper rear brakes. The Husqvarna TC 250 was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
