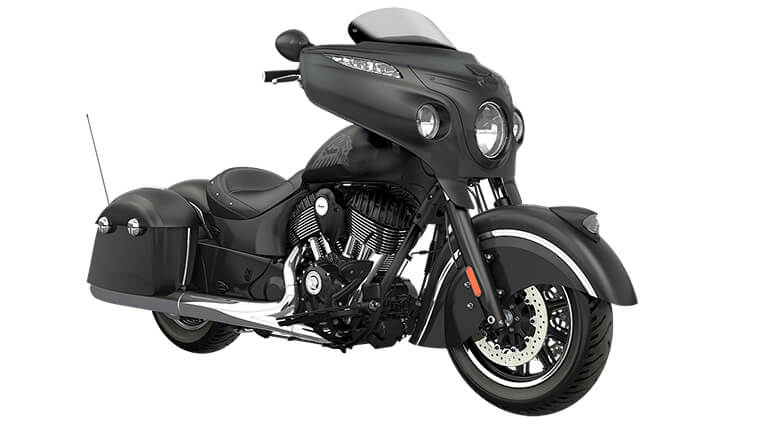

2017 Indian Chief Dark Horse Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Indian Chief Dark Horse.

Basic Specs

Year2017
MakeIndian
ModelIndian Chief Dark Horse
CostUS$ 17499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1811.00 ccm (110.51 cubic inches)
TypeThunder Stroke® 111 engine
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke101.6 x 113.0 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Closed Loop Sequential Port
Ignition
ExhaustSplit dual exhaust with cross-over
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchWet, multiplate
Driveline

Performance

Horespower
Torque139.00 Nm (14.2 kgf-m or 102.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeCast Aluminum Frame with Integrated Air-Box
Rake29.0°
Trail155 mm (6.1 inches)
Front SuspensionTelescopic fork
Front Travel119 mm (4.7 inches)
Rear SuspensionSingle shock
Rear Travel104 mm (4.1 inches)
SeatSolo vinyl seat with passenger pillion
Seat Height692 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,283 mm (50.5 inches)
Total Length2,553 mm (100.5 inches)
Total Width1,029 mm (40.5 inches)
Ground Clearance
Wheelbase1,646 mm (64.8 inches)
Dry Weight341.0 kg (751.8 pounds)
Wet Weight356.0 kg (784.8 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-B16
Rear Tire/Tyre150/80-B16
Front BrakesDouble disc. ABS. Floating discs.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS. Floating disc.
Rear Brake Diameter300 mm (11.8 inches)
WheelsCast

Comments

It appears you're interested in specifications for the Indian Chief Dark Horse. This Custom / cruiser model is powered by a Thunder Stroke® 111 engine V2, four-stroke engine with 1811.00 ccm (110.51 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. Closed Loop Sequential Port allowing this machine to produce its horsepower and 139.00 Nm (14.2 kgf-m or 102.5 ft.lbs) torque. According to our records engine heat of the Indian Chief Dark Horse is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/90-B16 and the rear is 150/80-B16 . The entire package is supported by the frame, Cast Aluminum Frame with Integrated Air-Box. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. front brakes and Single disc. ABS. Floating disc. rear brakes. The Indian Chief Dark Horse was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Keyless starting. Cruise Control.
