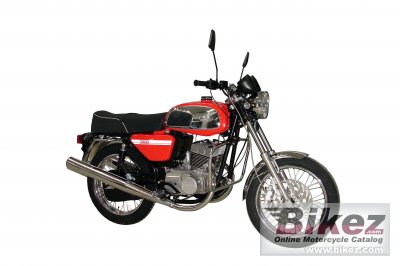

2017 Jawa-CZ 350 Retro Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Jawa-CZ 350 Retro.

Basic Specs

Year2017
MakeJawa-CZ
ModelJawa-CZ 350 Retro
Cost

Engine

Displacement343.50 ccm (20.96 cubic inches)
Type
DetailsTwin, two-stroke
Max RPM
Compression9.8:1
Bore/Stroke58.0 x 65.0 mm (2.3 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
ExhaustChrome
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower22.79 HP (16.6 kW)
Torque32.00 Nm (3.3 kgf-m or 23.6 ft.lbs)
Top Speed120.0 km/h (74.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front SuspensionTelescopic forks
Front Travel150 mm (5.9 inches)
Rear SuspensionTelescopic units
Rear Travel80 mm (3.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,350 mm (53.1 inches)
Dry Weight154.0 kg (339.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.25-18
Rear Tire/Tyre3.50-18
Front BrakesSingle disc
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter160 mm (6.3 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Jawa-CZ 350 Retro. This Classic model is powered by a Twin, two-stroke engine with 343.50 ccm (20.96 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 22.79 HP (16.6 kW) horsepower and 32.00 Nm (3.3 kgf-m or 23.6 ft.lbs) torque. According to our records engine heat of the Jawa-CZ 350 Retro is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.25-18 and the rear is 3.50-18 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Jawa-CZ 350 Retro was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Optional 634cc engine (not intended for sale in Europe).
