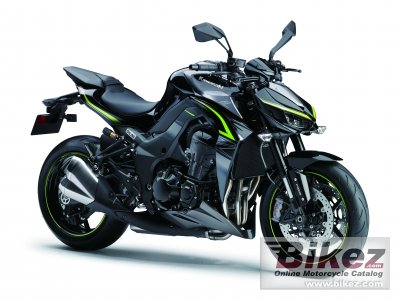

2017 Kawasaki Z1000 R Edition Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Kawasaki Z1000 R Edition.

Basic Specs

Year2017
MakeKawasaki
ModelKawasaki Z1000 R Edition
Cost

Engine

Displacement1043.00 ccm (63.64 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke77.0 x 56.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower142.00 HP (103.6 kW)
Torque111.00 Nm (11.3 kgf-m or 81.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeTwin-tube, aluminium
Rake24.5°
Trail104 mm (4.1 inches)
Front Suspension41 mm inverted fork with stepless compression and rebound damping and spring preload adjustability
Front Travel120 mm (4.7 inches)
Rear SuspensionHorizontal monoshock with stepless rebound damping, adjustable spring preload
Rear Travel135 mm (5.3 inches)
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,055 mm (41.5 inches)
Total Length2,045 mm (80.5 inches)
Total Width790 mm (31.1 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,435 mm (56.5 inches)
Dry Weight
Wet Weight221.0 kg (487.2 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. Dual radial-mount, Brembo M50 monobloc, opposed 4-piston.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Single-piston
Rear Brake Diameter250 mm (9.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Z1000 R Edition. This Naked bike model is powered by a In-line four, four-stroke engine with 1043.00 ccm (63.64 cubic inches) of actual displacement before 11.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 142.00 HP (103.6 kW) horsepower and 111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) torque. According to our records engine heat of the Kawasaki Z1000 R Edition is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Twin-tube, aluminium. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual radial-mount, Brembo M50 monobloc, opposed 4-piston. front brakes and Single disc. Single-piston rear brakes. The Kawasaki Z1000 R Edition was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
