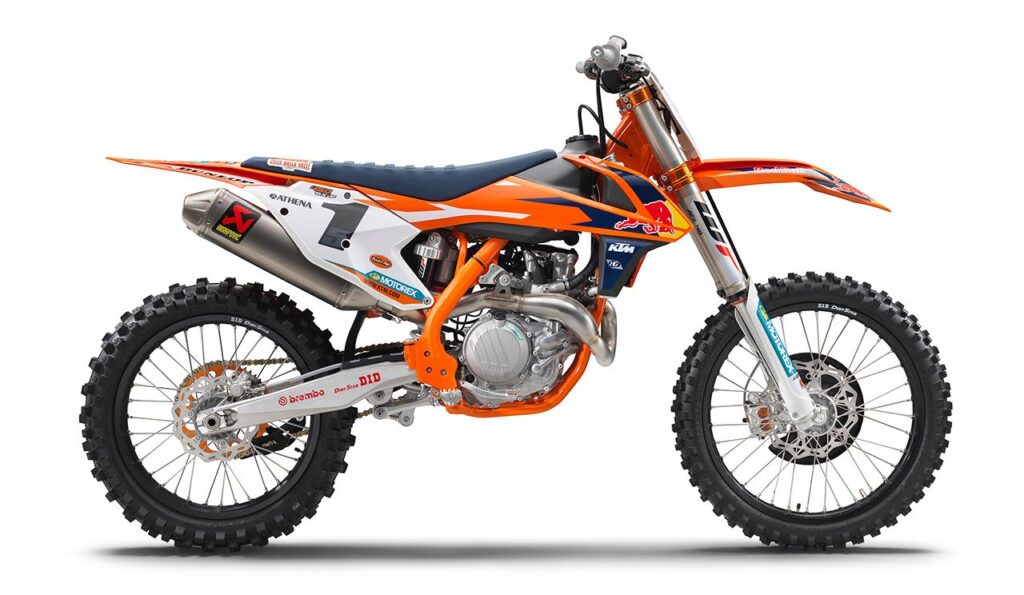

2017 KTM 450 SX-F Factory Edition Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 KTM 450 SX-F Factory Edition.

Basic Specs

Year2017
MakeKTM
ModelKTM 450 SX-F Factory Edition
Cost

Engine

Displacement449.30 ccm (27.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions

Chassis

Frame Type25CrMo4 steel central-tube frame
Rake26.5°
Trail
Front SuspensionWP-USD, AER 48, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight100.4 kg (221.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brake calipers on floating bearings
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brake calipers on floating bearings
Rear Brake Diameter220 mm (8.7 inches)
WheelsCNC machined hubs. Excel rims. Wire spoked.

Comments

It appears you're interested in specifications for the KTM 450 SX-F Factory Edition. This Cross / motocross model is powered by a Single cylinder, four-stroke engine with 449.30 ccm (27.42 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 450 SX-F Factory Edition is moderated by Liquid. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, 25CrMo4 steel central-tube frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brake calipers on floating bearings front brakes and Single disc. Brake calipers on floating bearings rear brakes. The KTM 450 SX-F Factory Edition was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
