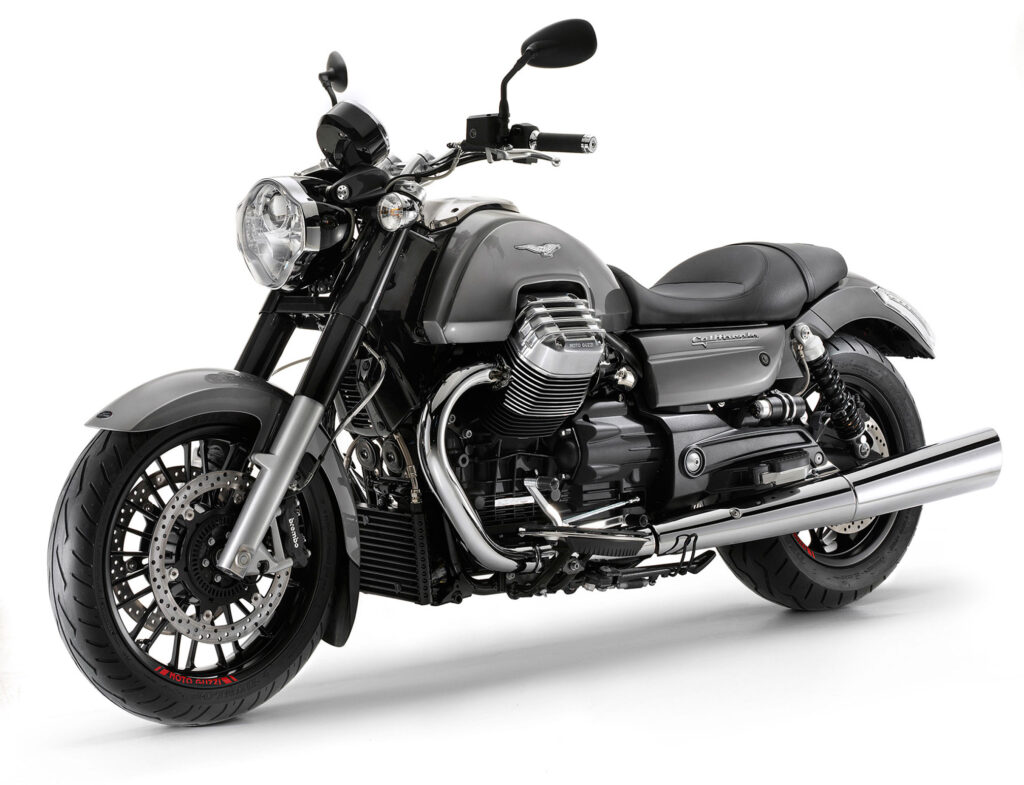

2017 Moto Guzzi California 1400 Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Moto Guzzi California 1400 Custom.

Basic Specs

Year2017
MakeMoto Guzzi
ModelMoto Guzzi California 1400 Custom
CostUS$ 15490. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1380.00 ccm (84.21 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke
Valves/Cylinder2
FuelingInjection
IgnitionRide by Wire with integral management of 3 engine maps
ExhaustStainless steel, 2-into-2; three-way catalytic converter
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc with integrated anti-vibration buffer
DrivelineDouble cardan joint and fixed bevel gear seat

Performance

Horespower95.00 HP (69.3 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.50 litres (5.42 gallons)
Emissions

Chassis

Frame TypeSteel tubing, closed double cradle with elastic-kinematic engine mounting system to isolate vibrations.
Rake32.0°
Trail
Front Suspension46mm telescopic fork
Front Travel120 mm (4.7 inches)
Rear SuspensionDual shocks adjustable spring preload
Rear Travel110 mm (4.3 inches)
Seat
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,445 mm (96.3 inches)
Total Width1,030 mm (40.6 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,685 mm (66.3 inches)
Dry Weight
Wet Weight303.0 kg (668.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre200/60-R16
Front BrakesDouble disc. ABS. Stainless steel floating discs, 4-piston Brembo radial calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Stainless steel fixed disc, 2-piston Brembo floating caliper .
Rear Brake Diameter282 mm (11.1 inches)
WheelsAluminium alloy

Comments

It appears you're interested in specifications for the Moto Guzzi California 1400 Custom. This Custom / cruiser model is powered by a 90° V-twin V2, four-stroke engine with 1380.00 ccm (84.21 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 95.00 HP (69.3 kW) horsepower and 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) torque. According to our records engine heat of the Moto Guzzi California 1400 Custom is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 200/60-R16 . The entire package is supported by the frame, Steel tubing, closed double cradle with elastic-kinematic engine mounting system to isolate vibrations.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Stainless steel floating discs, 4-piston Brembo radial calipers front brakes and Single disc. ABS. Stainless steel fixed disc, 2-piston Brembo floating caliper . rear brakes. The Moto Guzzi California 1400 Custom was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
