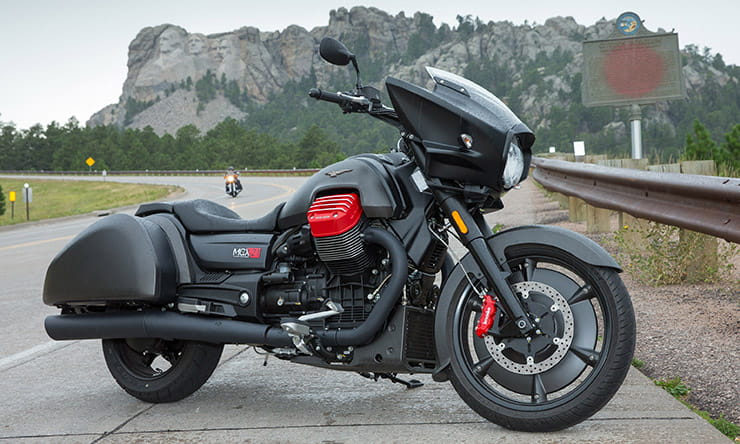

2017 Moto Guzzi MGX-21 Flying Fortress Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Moto Guzzi MGX-21 Flying Fortress.

Basic Specs

Year2017
MakeMoto Guzzi
ModelMoto Guzzi MGX-21 Flying Fortress
CostUS$ 21290. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1380.00 ccm (84.21 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder2
FuelingInjection. Weber-Marelli electronic fuel injection.
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDry single plate with flexible couplings
Driveline

Performance

Horespower95.21 HP (69.5 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.50 litres (5.42 gallons)
Emissions

Chassis

Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length2,445 mm (96.3 inches)
Total Width940 mm (37.0 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase
Dry Weight
Wet Weight314.0 kg (692.3 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-21
Rear Tire/Tyre180/60-16
Front BrakesDouble disc. ABS
Front Brake Diameter
Rear BrakesSingle disc. ABS
Rear Brake Diameter282 mm (11.1 inches)
WheelsCast aluminium

Comments

It appears you're interested in specifications for the Moto Guzzi MGX-21 Flying Fortress. This Custom / cruiser model is powered by a 90° V-twin V2, four-stroke engine with 1380.00 ccm (84.21 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection. allowing this machine to produce its 95.21 HP (69.5 kW) horsepower and 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) torque. According to our records engine heat of the Moto Guzzi MGX-21 Flying Fortress is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-21 and the rear is 180/60-16 . The entire package is supported by the frame, Double cradle tubular frame in ALS steel with detachable rear subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Moto Guzzi MGX-21 Flying Fortress was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
