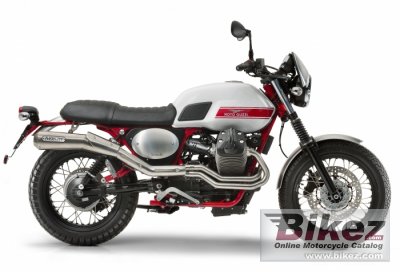

These are the known mechanical and performance specifications for your 2017 Moto Guzzi V7 II Stornello.
Basic Specs
Year2017
MakeMoto Guzzi
ModelMoto Guzzi V7 II Stornello
TypeClassic
CostUS$ 1190. Prices depend on country, taxes, accessories, etc.
Engine
Displacement744.00 ccm (45.40 cubic inches)
TypeLight alloy pushrods and rockers
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves/Cylinder2
FuelingInjection. Weber-Marelli
Ignition
ExhaustThree-way catalytic converter with double lambda probe
LubricationForced circulation with lobe pump - circuit capacity: 1.78 Kg
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchDry single plate with flexible couplings
DrivelineCompact Reactive Shaft Drive
Performance
Horespower48.00 HP (35.0 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.00 litres (5.81 gallons)
Emissions
Chassis
Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake
Trail
Front SuspensionTelescopic hydraulic fork with 40 mm stanchions
Front Travel130 mm (5.1 inches)
Rear SuspensionDie cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Rear Travel111 mm (4.4 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,113 mm (43.8 inches)
Total Length2,184 mm (86.0 inches)
Total Width800 mm (31.5 inches)
Ground Clearance179 mm (7.0 inches)
Wheelbase1,449 mm (57.0 inches)
Dry Weight
Wet Weight190.0 kg (418.9 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-18
Rear Tire/Tyre130/80-17
Front BrakesSingle disc. ABS. Brembo caliper with 4 differentiated pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter260 mm (10.2 inches)
WheelsSpoked polished aluminium rims
Comments
Switchable ABS. Limited edition model.
