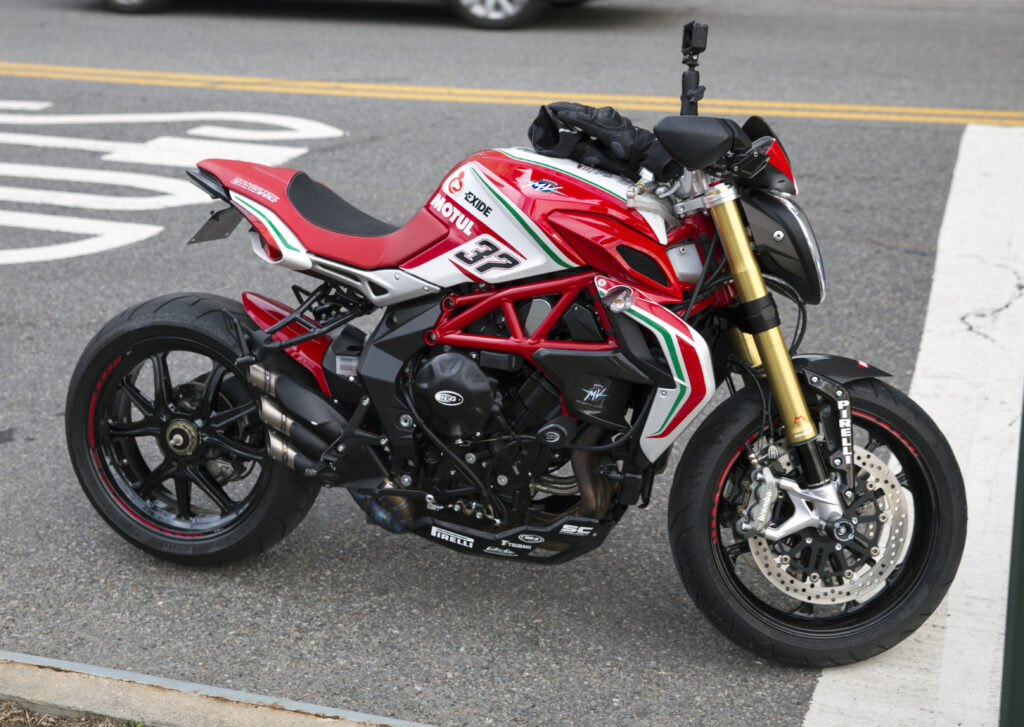

2017 MV Agusta Dragster 800 RC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 MV Agusta Dragster 800 RC.

Basic Specs

Year2017
MakeMV Agusta
ModelMV Agusta Dragster 800 RC
CostUS$ 20398. Prices depend on country, taxes, accessories, etc.

Engine

Displacement798.00 ccm (48.69 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM13200
Compression13.3:1
Bore/Stroke79.0 x 54.3 mm (3.1 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Mikuni Full Ride-By-Wire
IgnitionIntegrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi plate with slipper clutch
Driveline

Performance

Horespower140.00 HP (102.2 kW)
Torque86.00 Nm (8.8 kgf-m or 63.4 ft.lbs)
Top Speed245.0 km/h (152.2 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.60 litres (4.39 gallons)
Emissions

Chassis

Frame TypeMixed steel trellis and aluminium plates for high torsional rigidity
Rake
Trail95 mm (3.7 inches)
Front SuspensionMarzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Travel125 mm (4.9 inches)
Rear SuspensionProgressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Rear Travel125 mm (4.9 inches)
Seat
Seat Height811 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,060 mm (81.1 inches)
Total Width825 mm (32.5 inches)
Ground Clearance149 mm (5.9 inches)
Wheelbase1,380 mm (54.3 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/50-ZR17
Front BrakesDouble disc. ABS. Floating disc, 4-piston
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsRed aluminium alloy, black wire spokes

Comments

It appears you're interested in specifications for the MV Agusta Dragster 800 RC. This Naked bike model is powered by a In-line three, four-stroke engine with 798.00 ccm (48.69 cubic inches) of actual displacement before 13.3:1 compression. Fueling is metered via Injection. Mikuni Full Ride-By-Wire allowing this machine to produce its 140.00 HP (102.2 kW) horsepower and 86.00 Nm (8.8 kgf-m or 63.4 ft.lbs) torque. According to our records engine heat of the MV Agusta Dragster 800 RC is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/50-ZR17 . The entire package is supported by the frame, Mixed steel trellis and aluminium plates for high torsional rigidity. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating disc, 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The MV Agusta Dragster 800 RC was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Also called Brutale Dragster 800 RC
