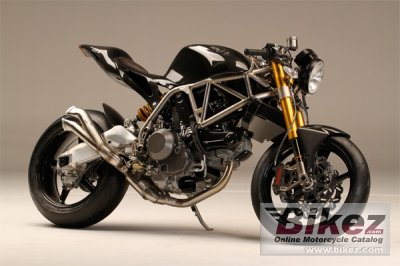

2017 NCR M4 One Shot Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 NCR M4 One Shot.

Basic Specs

Year2017
MakeNCR
ModelNCR M4 One Shot
TypeSport
CostUS$ 69000. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1100.00 ccm (67.12 cubic inches)
TypeDucati EVO 1100 engine.
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke
Valves/Cylinder4
FuelingInjection. EFI 45mm throttle bodies.
IgnitionMagneti Marelli high speed cpu with traction control and NCR designed military wiring and connectors.
ExhaustNCR full stainless steel system with catalytic converter and exhaust valve 5.1 kg (11.2 lbs)
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchNCR-EVR dry-type slipper clutch
Driveline

Performance

Horespower132.00 HP (96.4 kW)
Torque143.00 Nm (14.6 kgf-m or 105.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions

Chassis

Frame TypeNCR titanium frame weight 4.8 Kg (10.6 lbs). Subframe: NCR titanium subframe with Schedoni leather seat on a carbon fiber base.
Rake24.0°
Trail
Front SuspensionOhlins 43 mm upside-down fork with TiN surface treatment, adjustable off-set, radial calipers with NCR CORSE billet aluminum fork bottoms, tuned by NCR CORSE. Triple clamps made from billet AL 7075 with an adjustable offset of 24 to 32 mm in 2 mm incremen
Front Travel
Rear SuspensionFully adjustable Ohlins monoshock with eccentric adjustor. Tuned by NCR CORSE
Rear Travel
SeatSchedoni leather seat on a carbon fiber base.
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight126.0 kg (277.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R17
Rear Tire/Tyre190/55-R17
Front BrakesDouble disc. WAVE discs, 4-piston 2-pad Brembo SBK radial caliper from billet.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. WAVE disc, 2-piston Brembo caliper from billet..
Rear Brake Diameter200 mm (7.9 inches)
WheelsBST-NCR Carbon fiber wheels

Comments

It appears you're interested in specifications for the NCR M4 One Shot. This Sport model is powered by a Ducati EVO 1100 engine. V2, four-stroke engine with 1100.00 ccm (67.12 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. EFI 45mm throttle bodies. allowing this machine to produce its 132.00 HP (96.4 kW) horsepower and 143.00 Nm (14.6 kgf-m or 105.5 ft.lbs) torque. According to our records engine heat of the NCR M4 One Shot is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-R17 and the rear is 190/55-R17 . The entire package is supported by the frame, NCR titanium frame weight 4.8 Kg (10.6 lbs). Subframe: NCR titanium subframe with Schedoni leather seat on a carbon fiber base.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. WAVE discs, 4-piston 2-pad Brembo SBK radial caliper from billet. front brakes and Single disc. WAVE disc, 2-piston Brembo caliper from billet.. rear brakes. The NCR M4 One Shot was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Completely using Poggipolini Titanium fasteners. Adjustable rear sets in AL 7075 and titanium, gas cap assembly in aluminum from billet, clip-ons in AL 7075 with titanium tubes, triple clamps from AL 7075 with adjustable offset from 24 to 32 mm, Ohlins steering damper with billet mount in titanium, billet oil fill plug, front fairing stay in aluminum, NCR 32mm slave master machined from billet, titanium oil reservoirs. NCR custom oil cooler. Traction control
