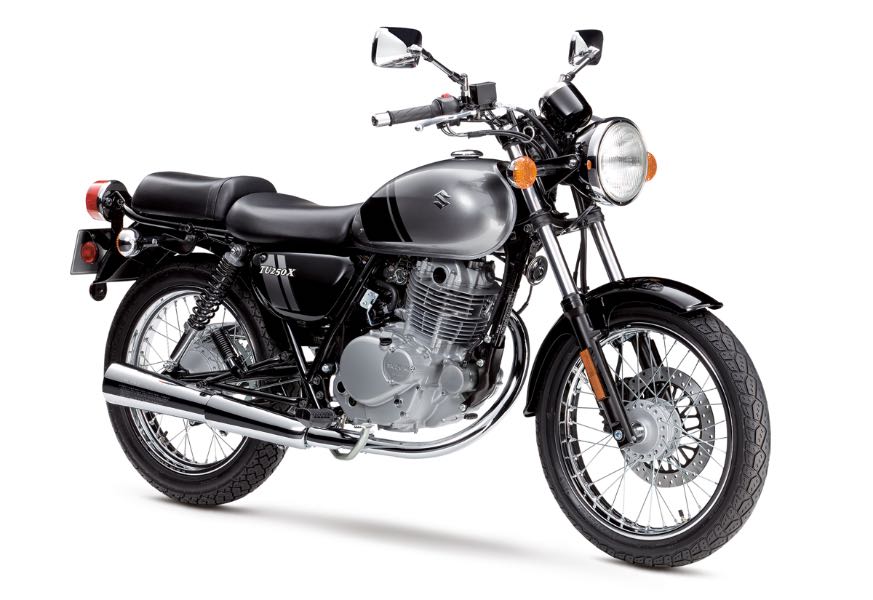

2017 Suzuki TU250X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Suzuki TU250X.

Basic Specs

Year2017
MakeSuzuki
ModelSuzuki TU250X
CostUS$ 4399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement248.00 ccm (15.13 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke53.5 x 55.2 mm (2.1 x 2.2 inches)
Valves/Cylinder
FuelingInjection. Suzuki fuel injection
IgnitionElectronic
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
DrivelineChain, DID520V, 108 links

Performance

Horespower24.00 HP (17.5 kW)
Torque
Top Speed135.0 km/h (83.9 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeDiamond-shaped steel tube
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel120 mm (4.7 inches)
Rear SuspensionSwing arm type, coil spring, oil damped
Rear Travel120 mm (4.7 inches)
SeatTwo piece rider and passenger seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,070 mm (81.5 inches)
Total Width750 mm (29.5 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,375 mm (54.1 inches)
Dry Weight
Wet Weight148.0 kg (326.3 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-M18
Rear Tire/Tyre110/90-M18
Front BrakesSingle disc. Dual piston
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki TU250X. This Allround model is powered by a Single cylinder, four-stroke engine with 248.00 ccm (15.13 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Suzuki fuel injection allowing this machine to produce its 24.00 HP (17.5 kW) horsepower and torque. According to our records engine heat of the Suzuki TU250X is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-M18 and the rear is 110/90-M18 . The entire package is supported by the frame, Diamond-shaped steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual piston front brakes and Expanding brake (drum brake) rear brakes. The Suzuki TU250X was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
