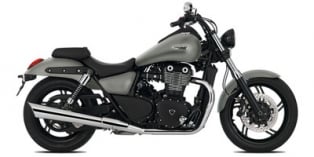

These are the known mechanical and performance specifications for your 2017 Triumph Thunderbird Storm.
Basic Specs


Year2017
MakeTriumph
ModelTriumph Thunderbird Storm
TypeCustom / cruiser
CostUS$ 15000. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1699.00 ccm (103.67 cubic inches)
Type270º firing interval
DetailsTwin, four-stroke
Max RPM
Compression
Bore/Stroke107.1 x 94.3 mm (4.2 x 3.7 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic fuel injection. progressive linkage on throttle
IgnitionDigital-inductive type via engine management system
ExhaustChromed twin-skin stainless steel 2 into 1 into 2. tandem large-volume catalysts in centralized catbox. chrome-plated exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchWet. multi-plate
DrivelineToothed Belt
Performance
Horespower98.00 HP (71.5 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption7.13 litres/100 km (14.0 km/l or 32.99 mpg)
Fuel Capacity22.00 litres (5.81 gallons)
Emissions165.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel. Twin spine
Rake32.0°
Trail151 mm (5.9 inches)
Front SuspensionShowa 47mm forks.
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa chromed spring twin shocks with 5 position adjustable preload.
Rear Travel95 mm (3.7 inches)
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,340 mm (92.1 inches)
Total Width880 mm (34.6 inches)
Ground Clearance
Wheelbase1,615 mm (63.6 inches)
Dry Weight308.0 kg (679.0 pounds)
Wet Weight339.0 kg (747.4 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-R19
Rear Tire/Tyre200/50-R17
Front BrakesDouble disc. Nissin 4-piston fixed calipers. ABS.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Brembo 2-piston floating caliper. ABS
Rear Brake Diameter310 mm (12.2 inches)
WheelsCast aluminum alloy 5-spoke
