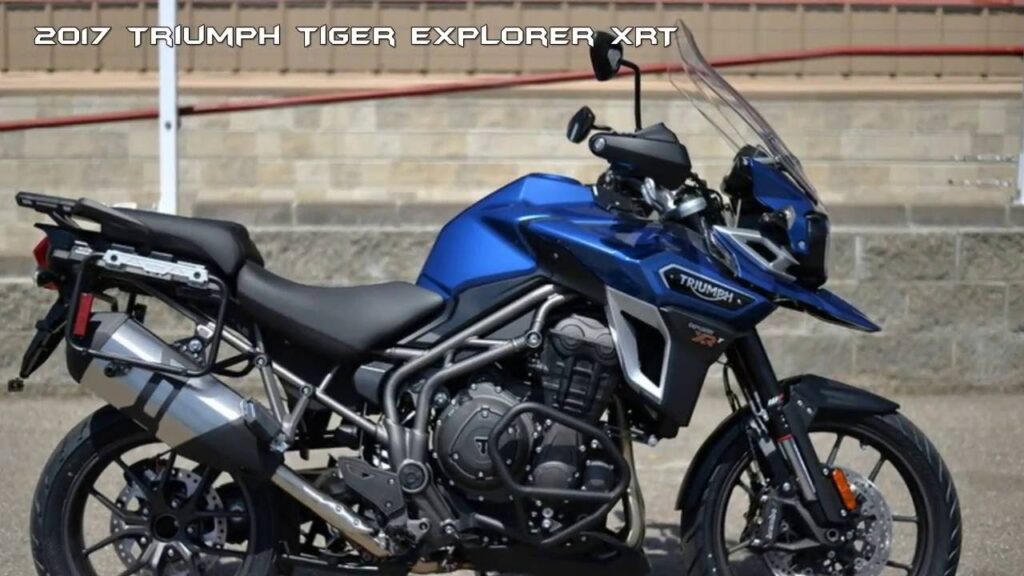

These are the known mechanical and performance specifications for your 2017 Triumph Tiger Explorer XRt.
Basic Specs
Year2017
MakeTriumph
ModelTriumph Tiger Explorer XRt
TypeAllround
CostUS$ 19800. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1215.00 ccm (74.14 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke85.0 x 71.4 mm (3.3 x 2.8 inches)
Valves/Cylinder4
FuelingInjection
Ignition
ExhaustStainless steel 3 into 1 side mounted stainless steel silencer
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet. multi-plate
Driveline
Performance
Horespower139.00 HP (101.5 kW)
Torque123.00 Nm (12.5 kgf-m or 90.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel trellis frame. Single-sided, cast aluminium alloy swing arm with shaft drive.
Rake23.1°
Trail99 mm (3.9 inches)
Front SuspensionWP 48 mm upside down forks, electronically adjustable damping,
Front Travel190 mm (7.5 inches)
Rear SuspensionWP monoshock, electronically adjustable semi active damping,
Rear Travel193 mm (7.6 inches)
SeatHeated rider and passenger seat
Seat Height837 mm (33.0 inches) If adjustable, lowest setting.
Alt. Seat Height857 mm (33.7 inches) If adjustable, highest setting.
Total Height1,470 mm (57.9 inches)
Total Length
Total Width885 mm (34.8 inches)
Ground Clearance
Wheelbase1,520 mm (59.8 inches)
Dry Weight254.0 kg (560.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-R19
Rear Tire/Tyre170/60-R17
Front BrakesDouble disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc. Nissin 2-piston sliding caliper, Switchable ABS
Rear Brake Diameter282 mm (11.1 inches)
WheelsCast aluminium alloy 10-spoke
Comments
Windscreen. Auxiliary lights. Engine protection bars. Cruise Control. Hand Guards. Heated Grips. Inertial Measurement Unit (IMU). Electrically adjustable Touring screen.
