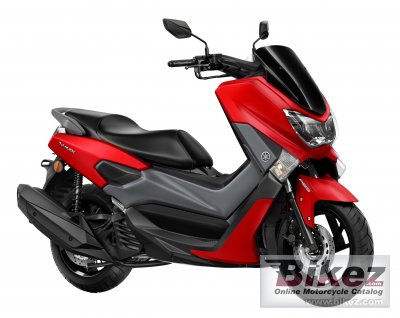

These are the known mechanical and performance specifications for your 2017 Yamaha NMAX.
Basic Specs
Engine
Displacement124.66 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke52.0 x 58.6 mm (2.0 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. EFI
IgnitionTransistorised
Exhaust
LubricationWet sump
CoolingLiquid
Performance
Horespower12.07 HP (8.8 kW)
Torque11.70 Nm (1.2 kgf-m or 8.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.60 litres (1.74 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel110 mm (4.3 inches)
Rear SuspensionUnit Swing, monoshock
Rear Travel84 mm (3.3 inches)
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length1,955 mm (77.0 inches)
Total Width740 mm (29.1 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,350 mm (53.1 inches)
Dry Weight
Wet Weight127.0 kg (280.0 pounds)
Wheels & Brakes
Front Tire/Tyre110/70-13
Rear Tire/Tyre130/70-13
Front BrakesSingle disc. Hydraulic. ABS.
Front Brake Diameter230 mm (9.1 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter230 mm (9.1 inches)
Wheels
